MT-357-12

Base product: WGB-AND-MISC-CABLE-SUPPORTS

Trapeze Kit, 12 in wide, one rung

Finish making your selections or clear them to view relevant specifications.
Find a partner

Product classification

Product Type Trapeze kit

General specifications

Application Waveguide bridge kit, 12 in
Cable Runs, quantity 7
Hole, quantity 7
Mounting Waveguide bridge channel
Rungs, quantity 1

Dimensions

Height 50.8 mm | 2 in
Width 355.6 mm | 14 in
Length 152.4 mm | 6 in
Hole Size 3/4 in | 7/16 in

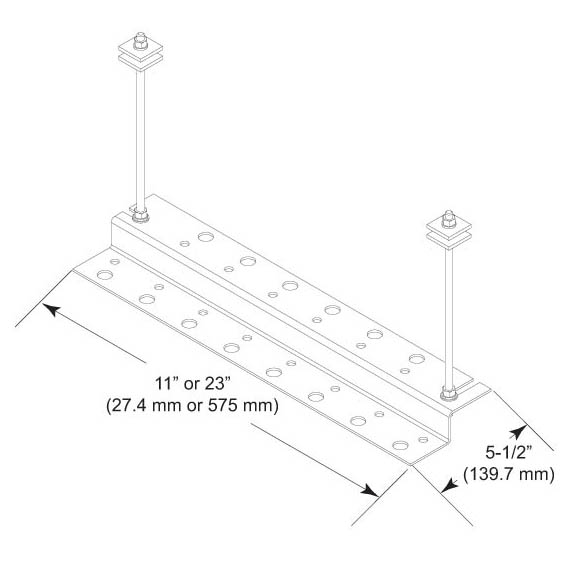

Outline drawing

Click on image to enlarge.

Material specifications

Material Type Hot dip galvanized steel

Packaging and weights

Included Hardware | Threaded rod | Z-bracket
Packaging quantity 1
Weight, net 1.8 kg | 3.968 lb

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Above maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
UK-ROHS Compliant/Exempted

Product classification

Product Type Trapeze kit

General specifications

Application Waveguide bridge kit, 12 in
Cable Runs, quantity 7
Hole, quantity 7
Mounting Waveguide bridge channel
Rungs, quantity 1

Dimensions

Height 50.8 mm | 2 in
Width 355.6 mm | 14 in
Length 152.4 mm | 6 in
Hole Size 3/4 in | 7/16 in

Material specifications

Material Type Hot dip galvanized steel

Packaging and weights

Included Hardware | Threaded rod | Z-bracket
Packaging quantity 1
Weight, net 1.8 kg | 3.968 lb
Click on image to enlarge.

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Above maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
UK-ROHS Compliant/Exempted

Assembly drawing

Trapeze Kit, 12 in
