ZB-H4
Base product: WGB-AND-MISC-CABLE-SUPPORTS
Horizontal Z-bracket, 11 in, for seven coaxial cable runs
Specifications
Product classification
| Product Type | Z-Bracket |
| Ordering Note | ANDREW® standard product (Global) |
General specifications
| Cable Runs, quantity | 7 |
| Hole, quantity | 7 |
| Mounting | Walls |
Dimensions
| Height | 50.8 mm | 2 in |
| Width | 152.4 mm | 6 in |
| Length | 279.4 mm | 11 in |
| Hole Size | 3/4 in | 7/16 in |

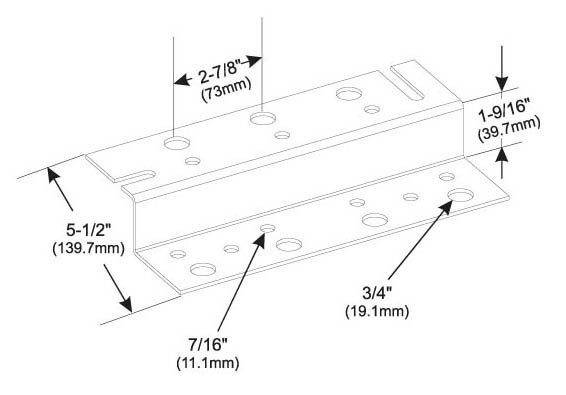

Outline drawing
| Click on image to enlarge. |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
Packaging and weights
| Included | Z-bracket |
| Packaging quantity | 1 |
| Weight, net | 1.2 kg | 2.646 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Product classification
| Product Type | Z-Bracket |
| Ordering Note | ANDREW® standard product (Global) |
General specifications
| Cable Runs, quantity | 7 |
| Hole, quantity | 7 |
| Mounting | Walls |
Dimensions
| Height | 50.8 mm | 2 in |
| Width | 152.4 mm | 6 in |
| Length | 279.4 mm | 11 in |
| Hole Size | 3/4 in | 7/16 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
Packaging and weights
| Included | Z-bracket |
| Packaging quantity | 1 |
| Weight, net | 1.2 kg | 2.646 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
