RT-CB4D

Base product: ROOF-CABLE-SUPPORTS

Rooftop Cover Kits for SnapStak® Snap-in Hangers, four holes

Finish making your selections or clear them to view relevant specifications.
Download specifications
Find a partner

Product classification

Product Type Cover

General specifications

Cable Runs, quantity 4
Hole, quantity 4
Mounting Non-penetrating

Dimensions

Height 279.4 mm | 11 in
Width 508 mm | 20 in
Length 2438.4 mm | 96 in
Hole Size 3/4 in

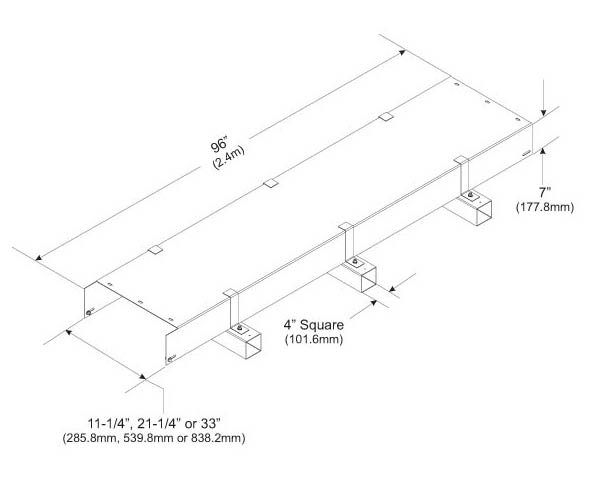

Outline drawing

Click on image to enlarge.

Material specifications

Material Type Galvanized steel

Mechanical specifications

Wind Rating For Specifications, please contact your local ANDREW representative

Packaging and weights

Included Channel | Hardware | Hold-down clamps | Sleepers (3)
Packaging quantity 1
Weight, net 39 kg | 85.98 lb

Regulatory compliance/certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system

Product classification

Product Type Cover

General specifications

Cable Runs, quantity 4
Hole, quantity 4
Mounting Non-penetrating

Dimensions

Height 279.4 mm | 11 in
Width 508 mm | 20 in
Length 2438.4 mm | 96 in
Hole Size 3/4 in

Material specifications

Material Type Galvanized steel

Mechanical specifications

Wind Rating For Specifications, please contact your local ANDREW representative

Packaging and weights

Included Channel | Hardware | Hold-down clamps | Sleepers (3)
Packaging quantity 1
Weight, net 39 kg | 85.98 lb
Click on image to enlarge.

Regulatory compliance/certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system

Assembly drawing

Roof-Top Cover Kit for SnapStak Snap-in Hangers, 4 holes
