SF-MONO-AMK-002
Base product: MOUNT-ACCESSORIES

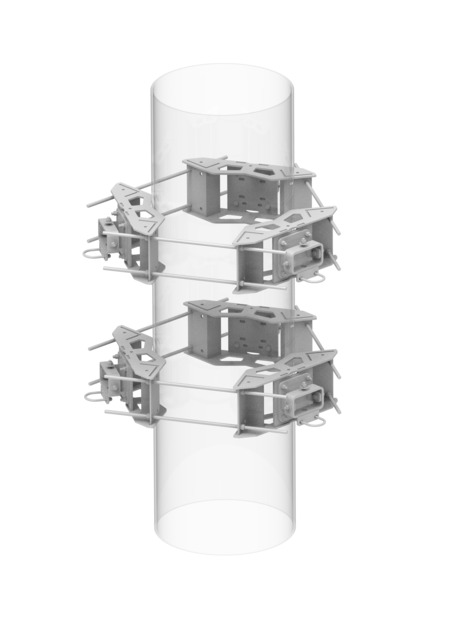

Mount Conversion Kit - enables mounting of (3) SFG2x Tower Sector Frames to MC-RM1550-3D Dual Ring Mount - Taper Bracket no pipe (Includes Ring Mounts - Sector Frames ordered separately)
Specifications
Product classification
| Product Type | Ring mount |
| Product Series | G2 |
General specifications
| Mounting | Monopole, 304.8–1270 mm (12–50 in) OD |
| Pipe, quantity | 0 |
| Sectors, quantity | 3 |
Dimensions
| Mounting Diameter, maximum | 1270.000 mm | 50 in |
| Mounting Diameter, minimum | 304.800 mm | 12 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Mounting hardware | Ring mounts (2) |
| Packaging quantity | 1 |
Product classification
| Product Type | Ring mount |
| Product Series | G2 |
General specifications
| Mounting | Monopole, 304.8–1270 mm (12–50 in) OD |
| Pipe, quantity | 0 |
| Sectors, quantity | 3 |
Dimensions
| Mounting Diameter, maximum | 1270.000 mm | 50 in |
| Mounting Diameter, minimum | 304.800 mm | 12 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Mounting hardware | Ring mounts (2) |
| Packaging quantity | 1 |
