TD-AWS-1-C-DEF | E14Z00P15
AWS Twin In-Band Diplexer Zero Guard Band, AWS DEF blocks + PCS / AWS C block with DC/AISG Sense and 4.3-10 Connectors
Specifications
Product classification
| Product Type | Diplexer |
General specifications
| Application | Indoor | Outdoor |
| Connector Interface | 4.3-10 Female |
| Connector Interface Style | Long neck |
| Rx Interface | 4.3-10 Female |
Dimensions
| Height | 245 mm | 9.646 in |
| Width | 274 mm | 10.787 in |
| Depth | 113 mm | 4.449 in |
| Ground Screw Diameter | 5 mm | 0.197 in |

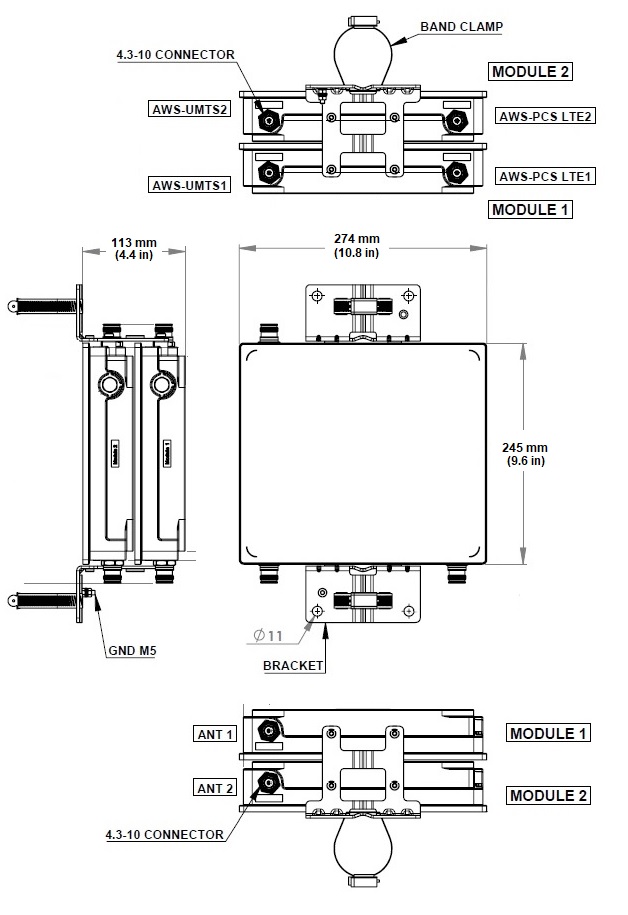

Outline drawing
| Click on image to enlarge. |
Electrical specifications, rx (uplink)
| Frequency Band | 1736 – 1754 MHz | 1850 – 1915 MHz |
| Insertion Loss, typical | 0.4 dB | 0.6 dB |
| Return Loss, minimum | 18 dB |
| Isolation, minimum | 23 dB |
| Port Designation | LTE AWS D,E,F + PCS band |
| Total Group Delay, maximum | 150 ns |
Electrical specifications 2, rx (uplink)
| Frequency Band | 1730.58 – 1734.42 MHz |
| Isolation, minimum | 23 dB |
| Port Designation | UMTS AWS C block |
| Total Group Delay, maximum | 160 ns |
| Insertion Loss, typical | 0.8 dB |
| Return Loss, minimum | 18 dB |
Electrical specifications, tx (downlink)
| Frequency Band | 1930 – 1995 MHz | 2136 – 2154 MHz |
| Isolation, minimum | 28 dB |
| Input Power, PEP, maximum | 1700 W |
| Input Power, RMS, maximum | 120 W |
| Total Group Delay, maximum | 120 ns |
| Insertion Loss, typical | 0.6 dB |
| Return Loss, minimum | 18 dB |
Electrical specifications 2, tx (downlink)
| Frequency Band | 2130.58 – 2134.42 MHz |
| Input Power, PEP, maximum | 1700 W |
| Insertion Loss, typical | 0.8 dB |
| Isolation, minimum | 28 dB |
| Return Loss, minimum | 18 dB |
| Total Group Delay, maximum | 160 ns |

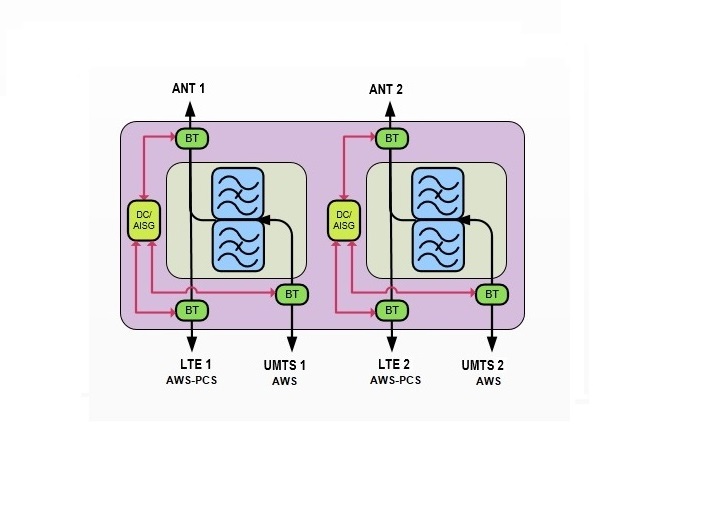

Block diagram
| Click on image to enlarge. |

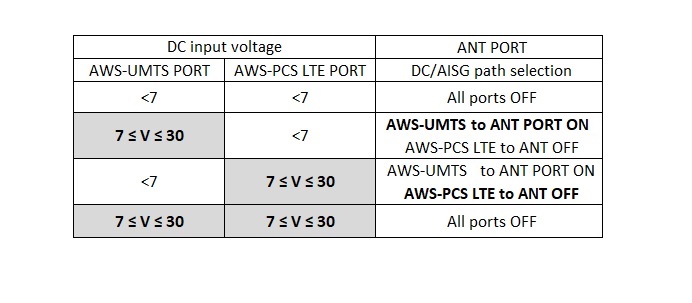

Logic table
| Click on image to enlarge. |
Environmental specifications
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Brackets |
| Weight, without mounting hardware | 8.8 kg | 19.401 lb |
Product classification
| Product Type | Diplexer |
General specifications
| Application | Indoor | Outdoor |
| Connector Interface | 4.3-10 Female |
| Connector Interface Style | Long neck |
| Rx Interface | 4.3-10 Female |
Dimensions
| Height | 245 mm | 9.646 in |
| Width | 274 mm | 10.787 in |
| Depth | 113 mm | 4.449 in |
| Ground Screw Diameter | 5 mm | 0.197 in |
Electrical specifications, rx (uplink)
| Frequency Band | 1736 – 1754 MHz | 1850 – 1915 MHz |
| Insertion Loss, typical | 0.4 dB | 0.6 dB |
| Return Loss, minimum | 18 dB |
| Isolation, minimum | 23 dB |
| Port Designation | LTE AWS D,E,F + PCS band |
| Total Group Delay, maximum | 150 ns |
Electrical specifications 2, rx (uplink)
| Frequency Band | 1730.58 – 1734.42 MHz |
| Isolation, minimum | 23 dB |
| Port Designation | UMTS AWS C block |
| Total Group Delay, maximum | 160 ns |
| Insertion Loss, typical | 0.8 dB |
| Return Loss, minimum | 18 dB |
Electrical specifications, tx (downlink)
| Frequency Band | 1930 – 1995 MHz | 2136 – 2154 MHz |
| Isolation, minimum | 28 dB |
| Input Power, PEP, maximum | 1700 W |
| Input Power, RMS, maximum | 120 W |
| Total Group Delay, maximum | 120 ns |
| Insertion Loss, typical | 0.6 dB |
| Return Loss, minimum | 18 dB |
Electrical specifications 2, tx (downlink)
| Frequency Band | 2130.58 – 2134.42 MHz |
| Input Power, PEP, maximum | 1700 W |
| Insertion Loss, typical | 0.8 dB |
| Isolation, minimum | 28 dB |
| Return Loss, minimum | 18 dB |
| Total Group Delay, maximum | 160 ns |
Environmental specifications
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Brackets |
| Weight, without mounting hardware | 8.8 kg | 19.401 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
| Click on image to enlarge. |
