TW-N10
Base product: TORQUE-WRENCH-TOOLS
Torque Wrench for coupling torque of Nex10 connectors, 11 mm opening
Specifications
Product classification
| Product Type | Wrench |
| Product Brand | HELIAX® |
| Ordering Note | ANDREW® non-standard product |
General specifications
| Application | Torques Nex10 connectors |
| Calibration | 6 mo |
| Tool Type | Torque wrench |
Dimensions
| Wrench Opening | 10.922 mm | 0.43 in |
Material specifications
| Material Type | Steel |
Mechanical specifications
| Torque Tolerance | -0/+2 |
| Torque Value | 1.505 N-m | 13.32 in lb |
Packaging and weights
| Height, packed | 284.48 mm | 11.2 in |
| Length, packed | 279.4 mm | 11 in |
| Packaging quantity | 1 |
| Weight, gross | 0.89 kg | 1.962 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product classification
| Product Type | Wrench |
| Product Brand | HELIAX® |
| Ordering Note | ANDREW® non-standard product |
General specifications
| Application | Torques Nex10 connectors |
| Calibration | 6 mo |
| Tool Type | Torque wrench |
Dimensions
| Wrench Opening | 10.922 mm | 0.43 in |
Material specifications
| Material Type | Steel |
Mechanical specifications
| Torque Tolerance | -0/+2 |
| Torque Value | 1.505 N-m | 13.32 in lb |
Packaging and weights
| Height, packed | 284.48 mm | 11.2 in |
| Length, packed | 279.4 mm | 11 in |
| Packaging quantity | 1 |
| Weight, gross | 0.89 kg | 1.962 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Documentation & downloads
Product specification
Technical publication
Product compliance documentation
Product specification
Technical publication
Related products & accessories
Related products
Fiber, power, RF connectivity & accessories
-
F1-XMHF-1-TMB FSJ1-50A SureFlex® Jumper with interface types Nex10 Male and 4.3-10 Female, 1 feet -
F1-XMHF-3-D D-CLASS FSJ1-50A SureFlex® Jumper with interface types Nex10 Male and 4.3-10 Female, 3 ft
-
F1-XMHF-34N-TMB FSJ1-50A SureFlex® Jumper with interface types Nex10 Male and 4.3-10 Female, 34 inches
-
F1-XMHM-2-SGW1-D D-CLASS FSJ1-50A SureFlex® Jumper with interface types NEX10 Male and 4.3-10 Male with HELIAX® SureGuard weatherproofing boot ( boot with HM end ), 2 ft -
F1-XMHM-3M-W-D D-CLASS FSJ1-50A SureFlex® Jumper with interface types NEX10 Male and 4.3-10 Male with HELIAX® SureGuard weatherproofing boot , 3 m -
F1-XMHM-5-TMB FSJ1-50A SureFlex® Jumper with interface types Nex10 Male and 4.3-10 Male, 5 ft
-
F1-XMHR-34N5-TMB FSJ1-50A SureFlex® Jumper with interface types Nex10 Male and 4.3-10 Male Right angle, 34.5 inches -
F1-XMNF-1-TMB FSJ1-50A SureFlex® Jumper with interface types Nex10 Male and N Female, 1 feet
-
F1-XMNF-34N-TMB FSJ1-50A SureFlex® Jumper with interface types Nex10 Male and N Female, 34 inches
-
F1-XMNR-1-TMB FSJ1-50A SureFlex® Jumper with interface types Nex10 Male and N Male Right angle, 1 feet
-
F1-XMNR-34N-TMB FSJ1-50A SureFlex® Jumper with interface types Nex10 Male and N Male Right angle, 34 inches
-
F1-XMXM-W-D D-CLASS FSJ1-50A SureFlex® Jumper with interface types NEX10 Male and NEX10 Male with HELIAX® SureGuard weatherproofing boot , variable length -
F1-XRHF-1-TMB FSJ1-50A SureFlex® Jumper with interface types Nex10 Male Right Angle and 4.3-10 Female,1 feet -
F1-XRHF-34N-TMB FSJ1-50A SureFlex® Jumper with interface types Nex10 Male Right Angle and 4.3-10 Female, 34 inches
-
F1-XRHR-34N5-TMB FSJ1-50A SureFlex® Jumper with interface types Nex10 Male Right Angle and 4.3-10 Male Right Angle,34.5 inches -
F1-XRNF-1-TMB FSJ1-50A SureFlex® Jumper with interface types Nex10 Male Right Angle and N Female,1 feet
-
F1-XRNF-34N-TMB FSJ1-50A SureFlex® Jumper with interface types Nex10 Male Right Angle and N Female, 34 inches
-
F1-XRNR-1-TMB FSJ1-50A SureFlex® Jumper with interface types Nex10 Male Right Angle and N Male Right angle,1 feet
-
F1-XRNR-34N-TMB FSJ1-50A SureFlex® Jumper with interface types Nex10 Male Right Angle and N Male Right angle,34 inches
-
F1A-XMHF-1M-P FSJ1-50A SureFlex® Jumper with interface types NEX10 Male and 4.3-10 Female , 1 m
-
F1A-XMHF-3-P-W1 FSJ1-50A SureFlex® Jumper with interface types NEX10 Male and 4.3-10 Female with HELIAX® SureGuard weatherproofing boot on NEX10 Male side,3 ft -
F1A-XMHM-18-P-W FSJ1-50A SureFlex® Jumper with interface types NEX10 Male and 4.3-10 Male with HELIAX® SureGuard weatherproofing ,18 ft
-
F1A-XMHM-1M-P-W1 FSJ1-50A SureFlex® Jumper with interface types NEX10 Male and 4.3-10 Male with HELIAX® SureGuard weatherproofing boot on 4.3-10 side,1 m
-
F1A-XMHM-2-P FSJ1-50A SureFlex® Jumper with interface types NEX10 Male and 4.3-10 Male, 2ft
-
F1A-XMHM-20-P FSJ1-50A SureFlex® Jumper with interface types NEX10 Male and 4.3-10 Male, 20ft
-
F1A-XMHM-3-P FSJ1-50A SureFlex® Jumper with interface types NEX10 Male and 4.3-10 Male, 3ft
-
F1A-XMHM-3M-P FSJ1-50A SureFlex® Jumper with interface types NEX10 Male and 4.3-10 Male, 3m
-
F1A-XMHM-6-P FSJ1-50A SureFlex® Jumper with interface types NEX10 Male and 4.3-10 Male, 6ft
-
F1A-XMHM-6-P-W FSJ1-50A SureFlex® Jumper with interface types NEX10 Male and 4.3-10 Male with HELIAX® SureGuard weatherproofing ,6 ft
-
F1A-XMNM-10-P FSJ1-50A SureFlex® Jumper with interface types NEX10 Male and N Male, 10 ft
-
F1A-XMNM-3M-P FSJ1-50A SureFlex® Jumper with interface types NEX10 Male and N Male, 3m
-
F1A-XMPHF-M3 FSJ1-50A SureFlex® Jumper with interface types NEX10 Male Push-Pull and 4.3-10 Female, 0.3 m
-
F1A-XMPNF-M3 FSJ1-50A SureFlex® Jumper with interface types NEX10 Male Push-Pull and N Female, 0.3 m
-
F1A-XMSM-2M FSJ1-50A SureFlex® Jumper with interface types NEX10 Male and SMA Male, 2 m
-

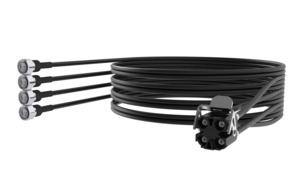

MLOC-4-F1XM-HM-3M HELIAX® M-LOC Multiport cluster 4 ports SureFlex® cable assembly with interface type M-LOC latching male to 4.3-10 male,size 1/4", length 3 meters -
