MT-F1223
Splice Stiffener
Specifications
Product classification
| Product Type | Splices and splicing kits |
General specifications
| Application | Waveguide bridge kit, 12 in | Waveguide bridge kit, 24 in |
| Mounting | Solid waveguide bridge |
Dimensions
| Height | 50.8 mm | 2 in |
| Width | 50.8 mm | 2 in |
| Length | 838.2 mm | 33 in |

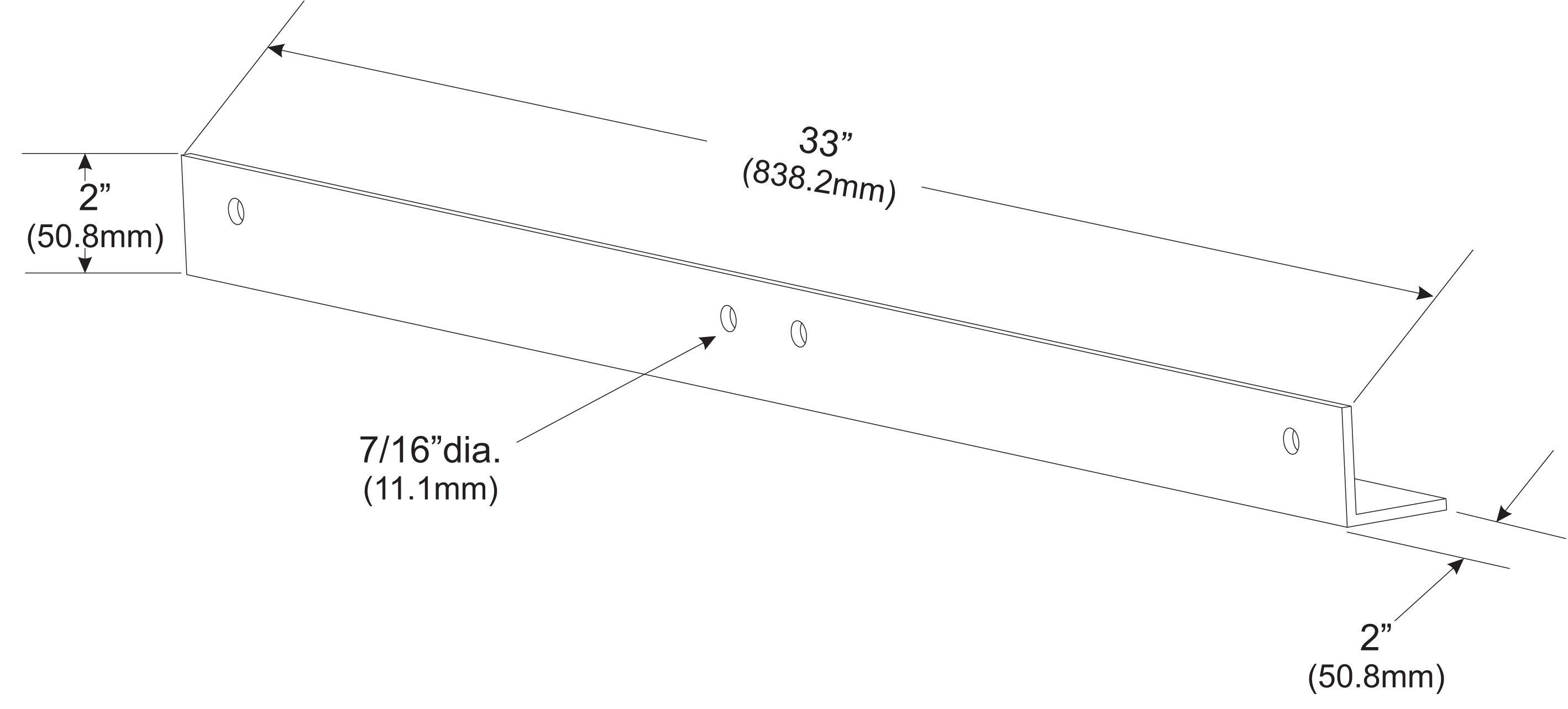

Outline drawing
| Click on image to enlarge. |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Hardware | Stiffeners |
| Packaging quantity | 1 |
| Weight, net | 6.4 kg | 14.11 lb |
Product classification
| Product Type | Splices and splicing kits |
General specifications
| Application | Waveguide bridge kit, 12 in | Waveguide bridge kit, 24 in |
| Mounting | Solid waveguide bridge |
Dimensions
| Height | 50.8 mm | 2 in |
| Width | 50.8 mm | 2 in |
| Length | 838.2 mm | 33 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Hardware | Stiffeners |
| Packaging quantity | 1 |
| Weight, net | 6.4 kg | 14.11 lb |
| Click on image to enlarge. |
