MF-130
Direct Burial Pipe Column, 13 ft 4 in
Specifications
Product classification
| Product Type | Pipe column |
General specifications
| Application | Direct burial |
| Mounting | Waveguide bridge support bracket |
| Pipe, quantity | 1 |
Dimensions
| Height | 4064 mm | 160 in |
| Width | 88.9 mm | 3.5 in |
| Length | 88.9 mm | 3.5 in |
| Pipe Length | 4053.84 mm | 159.6 in |
| Pipe Outer Diameter | 88.9 mm | 3.5 in |

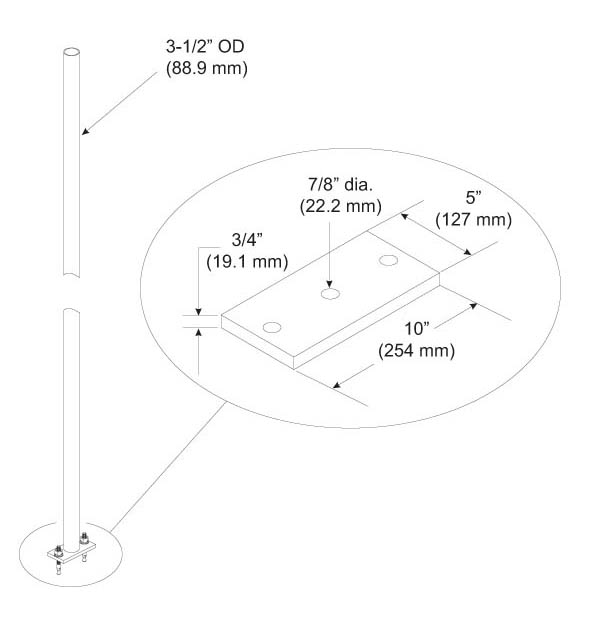

Outline drawing
| Click on image to enlarge. |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Anchors | Pipe |
| Packaging quantity | 1 |
| Weight, net | 45.8 kg | 100.972 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Product classification
| Product Type | Pipe column |
General specifications
| Application | Direct burial |
| Mounting | Waveguide bridge support bracket |
| Pipe, quantity | 1 |
Dimensions
| Height | 4064 mm | 160 in |
| Width | 88.9 mm | 3.5 in |
| Length | 88.9 mm | 3.5 in |
| Pipe Length | 4053.84 mm | 159.6 in |
| Pipe Outer Diameter | 88.9 mm | 3.5 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Anchors | Pipe |
| Packaging quantity | 1 |
| Weight, net | 45.8 kg | 100.972 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
