WT-RTA12-9-96
Water Tower Rooftop Assembly, 3-sector, 12 ft face, nine 2-3/8 in OD x 96 in plain end pipes included
Specifications
Product classification
| Product Type | Water tower mount |
General specifications
| Mounting | Weld-on feet |
| Pipe, quantity | 9 |
| Sectors, quantity | 3 |
Dimensions
| Height | 2438.4 mm | 96 in |
| Face Width | 3.81 m | 12.5 ft |
| Width | 4267.2 mm | 168 in |
| Length | 4267.2 mm | 168 in |
| Pipe Length | 2438.4 mm | 96 in |
| Pipe Outer Diameter | 60.96 mm | 2.4 in |

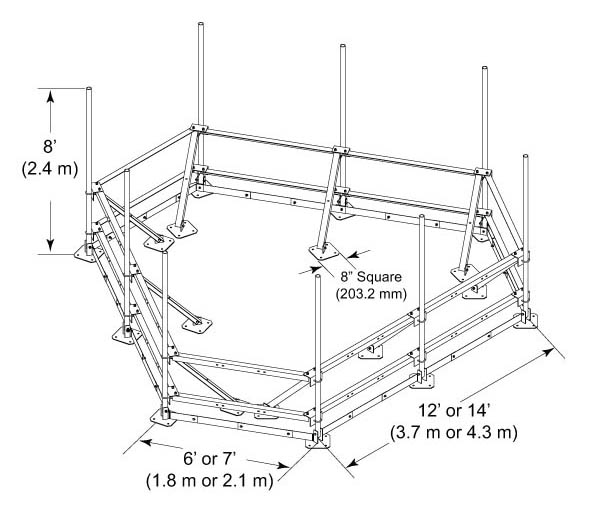

Outline drawing
| Click on image to enlarge. |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Mount | Plain end pipes (9) |
| Packaging quantity | 1 |
| Weight, net | 731.781 kg | 1613.3 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Product classification
| Product Type | Water tower mount |
General specifications
| Mounting | Weld-on feet |
| Pipe, quantity | 9 |
| Sectors, quantity | 3 |
Dimensions
| Height | 2438.4 mm | 96 in |
| Face Width | 3.81 m | 12.5 ft |
| Width | 4267.2 mm | 168 in |
| Length | 4267.2 mm | 168 in |
| Pipe Length | 2438.4 mm | 96 in |
| Pipe Outer Diameter | 60.96 mm | 2.4 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Mount | Plain end pipes (9) |
| Packaging quantity | 1 |
| Weight, net | 731.781 kg | 1613.3 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
