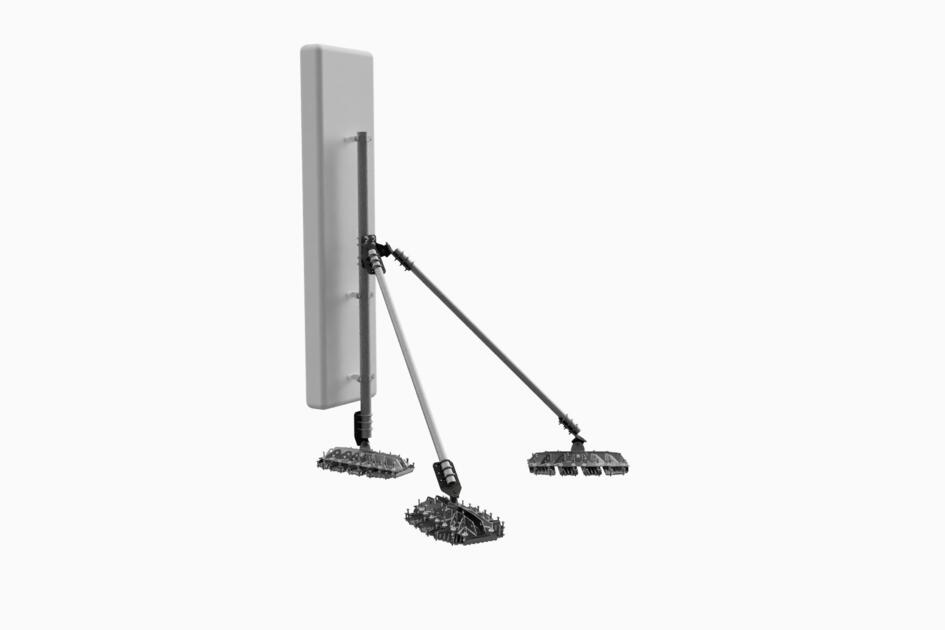

MAGPOD-326-CRV
Modular Magnetic Tripod Assembly with (1) 3 1/2in OD antenna mast pipe and (2) 2 3/8 in OD kicker pipes, uses (3) MAGFOOT-326-CRV as base.
Specifications
Product classification
| Product Type | Magnetic mount |
| Product Brand | Estech Magnetics |
| Ordering Note | ANDREW® non-standard product |
General specifications
| Mounting | Water tower surface |
| Sectors, quantity | 1 |
Dimensions
| Height | 229.616 mm | 9.04 in |
| Width | 552.958 mm | 21.77 in |
| Length | 816.356 mm | 32.14 in |
Packaging and weights
| Packaging quantity | 1 |
| Weight, net | 61.258 kg | 135.05 lb |
Product classification
| Product Type | Magnetic mount |
| Product Brand | Estech Magnetics |
| Ordering Note | ANDREW® non-standard product |
General specifications
| Mounting | Water tower surface |
| Sectors, quantity | 1 |
Dimensions
| Height | 229.616 mm | 9.04 in |
| Width | 552.958 mm | 21.77 in |
| Length | 816.356 mm | 32.14 in |
Packaging and weights
| Packaging quantity | 1 |
| Weight, net | 61.258 kg | 135.05 lb |
