MT-F1586
Wall-Mount Bracket for four coaxial cable runs
Specifications
Product classification
| Product Type | Mounting bracket |
General specifications
| Cable Runs, quantity | 4 |
| Hole, quantity | 4 |
| Mounting | Walls |
Dimensions
| Height | 101.6 mm | 4 in |
| Width | 50.8 mm | 2 in |
| Length | 304.8 mm | 12 in |
| Hole Size | 3/4 in |

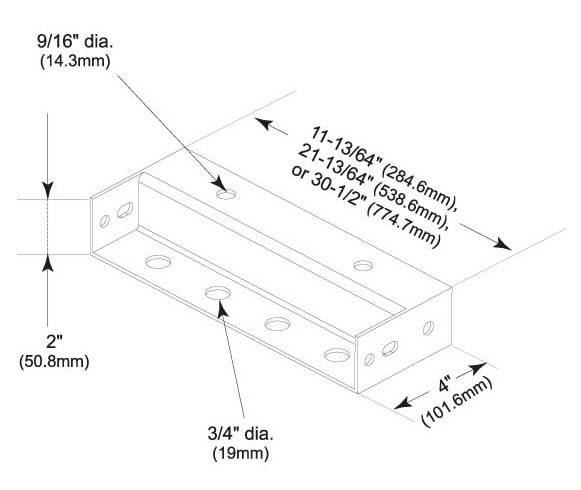

Outline drawing
| Click on image to enlarge. |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
Packaging and weights
| Included | Brackets |
| Packaging quantity | 1 |
| Weight, net | 1 kg | 2.205 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product classification
| Product Type | Mounting bracket |
General specifications
| Cable Runs, quantity | 4 |
| Hole, quantity | 4 |
| Mounting | Walls |
Dimensions
| Height | 101.6 mm | 4 in |
| Width | 50.8 mm | 2 in |
| Length | 304.8 mm | 12 in |
| Hole Size | 3/4 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
Packaging and weights
| Included | Brackets |
| Packaging quantity | 1 |
| Weight, net | 1 kg | 2.205 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Documentation & downloads
