DM-300
Stand-Off Wall Mount for solid and hollow wall, 36 in (4" to 7" OD Pipe Sold Separately)
Specifications
Product classification
| Product Type | Wall mount kit |
General specifications
| Mounting | Walls |
Dimensions
| Height | 838.2 mm | 33 in |
| Width | 76.2 mm | 3 in |
| Length | 914.4 mm | 36 in |
| Stand-off Distance | 914.4 mm | 36 in |

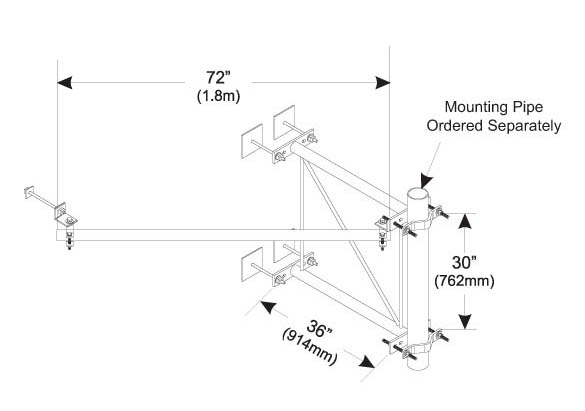

Outline drawing
| Click on image to enlarge. |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
Packaging and weights
| Included | Brackets | Stiff arm | Wall mount hardware |
| Packaging quantity | 1 |
| Weight, net | 68.4 kg | 150.796 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | Wall mount kit |
General specifications
| Mounting | Walls |
Dimensions
| Height | 838.2 mm | 33 in |
| Width | 76.2 mm | 3 in |
| Length | 914.4 mm | 36 in |
| Stand-off Distance | 914.4 mm | 36 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
Packaging and weights
| Included | Brackets | Stiff arm | Wall mount hardware |
| Packaging quantity | 1 |
| Weight, net | 68.4 kg | 150.796 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
