760260745-MT

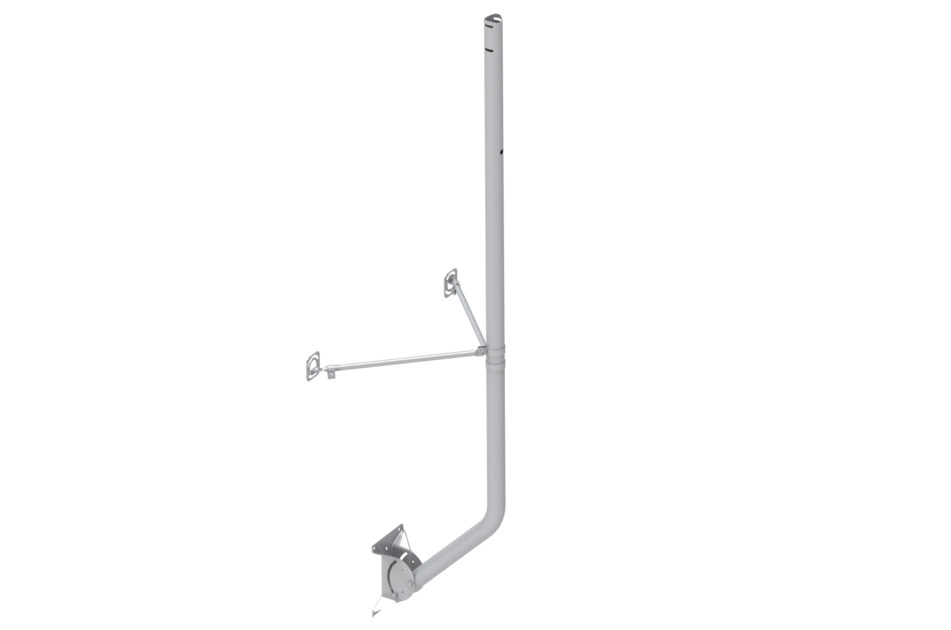

72" J-Mount - Heavy Duty Roof and Wall Mount kit with Adjustable Brace from 17" to 31"
Features and benefits
Installation Flexibility
- Supports Roof Angles ≥ 30° with optimal loading performance for angles ≥ 45°
- Also Supports Wall and Parapet mounting scenarios
- Adjustable Leg Braces from 17 to 31 inches
- Reversible - Both ends of mount compatible with base bracket
- Cable Access holes on both ends for shielded CAT6 routing
Heavy Duty Design
- Wind Load Capacity Up to 150 mph
-2” OD x 72” Mount Pipe powder coated military gray
Light Duty Options also available
-760260745-MT22 – Non-Adjustable 22” J-Mount
-760260745-MT39 – Non-Adjustable 39” J-Mount
- Supports Roof Angles ≥ 30° with optimal loading performance for angles ≥ 45°
- Also Supports Wall and Parapet mounting scenarios
- Adjustable Leg Braces from 17 to 31 inches
- Reversible - Both ends of mount compatible with base bracket
- Cable Access holes on both ends for shielded CAT6 routing
Heavy Duty Design
- Wind Load Capacity Up to 150 mph
-2” OD x 72” Mount Pipe powder coated military gray
Light Duty Options also available
-760260745-MT22 – Non-Adjustable 22” J-Mount
-760260745-MT39 – Non-Adjustable 39” J-Mount
Specifications
Product classification
| Product Type | Wall mount kit |
| Ordering Note | ANDREW® non-standard product |
General specifications
| Mounting | Roofs | Solid walls |
Dimensions
| Height | 1828.800 mm | 72 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
Packaging and weights
| Included | Braces | Mount | Mounting bracket | Mounting hardware |
| Packaging quantity | 1 |
| Weight, net | 5.67 kg | 12.500 lb |
Product classification
| Product Type | Wall mount kit |
| Ordering Note | ANDREW® non-standard product |
General specifications
| Mounting | Roofs | Solid walls |
Dimensions
| Height | 1828.800 mm | 72 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
Packaging and weights
| Included | Braces | Mount | Mounting bracket | Mounting hardware |
| Packaging quantity | 1 |
| Weight, net | 5.67 kg | 12.500 lb |
