TP-G238-B

Base product: TRIPOD-MOUNTS

Universal Tripod Mount, base only, pipe not included

Finish making your selections or clear them to view relevant specifications.
Download specifications
Find a partner

Product classification

Product Type Tripod mount

General specifications

Mounting Surfaces
Note One 6 ft microwave antenna using 4-1/2 in pipe mast
Pipe, quantity 0

Dimensions

Height 838.2 mm | 33 in
Width 1524 mm | 60 in
Length 1.524 m | 5 ft
Pipe Length 0.000 mm | 0 in
Pipe Outer Diameter 60.96 mm | 2.4 in

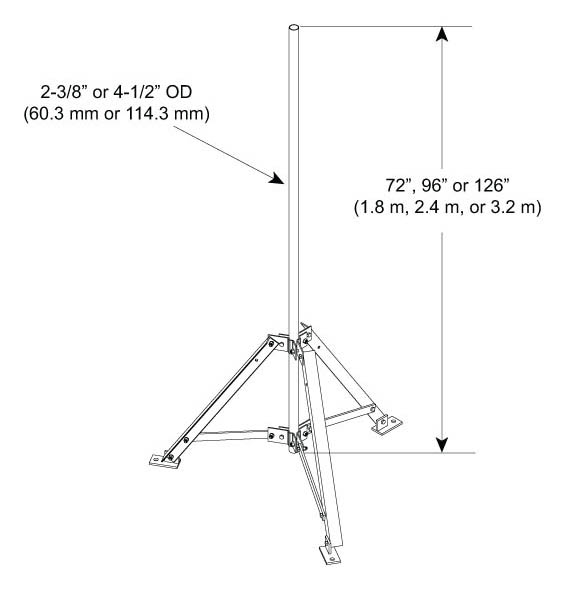

Outline drawing

Click on image to enlarge.

Material specifications

Material Type Hot dip galvanized steel

Mechanical specifications

Wind Rating 85 mph (BWS) at 100 ft AGL using Exposure C per UBC
Wind Rating Test Method TIA/EIA-222

Packaging and weights

Included Mount, with or without pipe
Packaging quantity 1
Weight, net 51.9 kg | 114.42 lb

Regulatory compliance/certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system

Product classification

Product Type Tripod mount

General specifications

Mounting Surfaces
Note One 6 ft microwave antenna using 4-1/2 in pipe mast
Pipe, quantity 0

Dimensions

Height 838.2 mm | 33 in
Width 1524 mm | 60 in
Length 1.524 m | 5 ft
Pipe Length 0.000 mm | 0 in
Pipe Outer Diameter 60.96 mm | 2.4 in

Material specifications

Material Type Hot dip galvanized steel

Mechanical specifications

Wind Rating 85 mph (BWS) at 100 ft AGL using Exposure C per UBC
Wind Rating Test Method TIA/EIA-222

Packaging and weights

Included Mount, with or without pipe
Packaging quantity 1
Weight, net 51.9 kg | 114.42 lb
Click on image to enlarge.

Regulatory compliance/certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system

Assembly drawing

Universal Tripod Mount, 2-3/8 in OD
