TP-300
Base product: ROOFTOP-MOUNTS-AND-ACCESSORIES

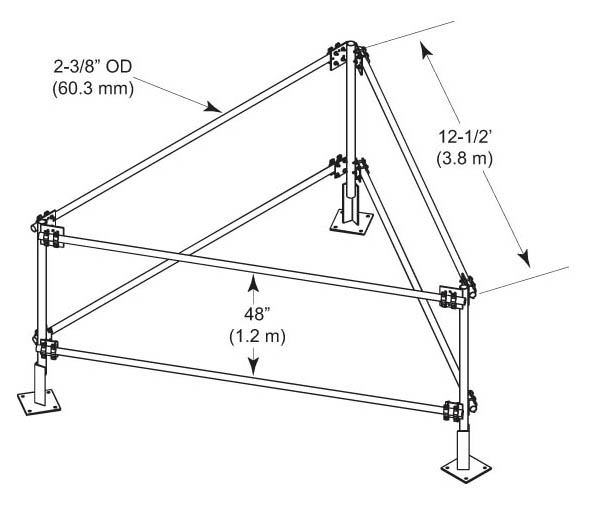

Multi-Sector Rooftop Mount
Specifications
Product classification
| Product Type | Rooftop mount |
General specifications
| Mounting | Penetrating |
Dimensions
| Height | 1905 mm | 75 in |
| Face Width | 3.81 m | 12.5 ft |
| Width | 3810 mm | 150 in |
| Length | 3.81 m | 12.5 ft |
| Pipe Outer Diameter | 60.96 mm | 2.4 in | 73.66 mm | 2.9 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
Packaging and weights
| Included | Mount |
| Packaging quantity | 1 |
| Weight, net | 257.9 kg | 568.571 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | Rooftop mount |
General specifications
| Mounting | Penetrating |
Dimensions
| Height | 1905 mm | 75 in |
| Face Width | 3.81 m | 12.5 ft |
| Width | 3810 mm | 150 in |
| Length | 3.81 m | 12.5 ft |
| Pipe Outer Diameter | 60.96 mm | 2.4 in | 73.66 mm | 2.9 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
Packaging and weights
| Included | Mount |
| Packaging quantity | 1 |
| Weight, net | 257.9 kg | 568.571 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
