RRU-AM-2
Base product: RRU-MOUNTS
RRU Angle Mount Kit for Angle Sector Frame Members (mounts 2.88in OD pipes to front of 90 degree angles 2in to 3in - Pipe not incl)
Specifications
Product classification
| Product Type | Mounting kit |
General specifications
| Mounting | Angle Members 50.8 –76.2 mm (2 in to 3 in) |
| Pipe, quantity | 0 |
Dimensions
| Height | 292.1 mm | 11.5 in |
| Width | 152.4 mm | 6 in |
| Length | 162.56 mm | 6.4 in |
| Mounting Diameter, maximum | 76.2 mm | 3 in |
| Mounting Diameter, minimum | 50.8 mm | 2 in |
| Pipe Outer Diameter | 73.66 mm | 2.9 in |

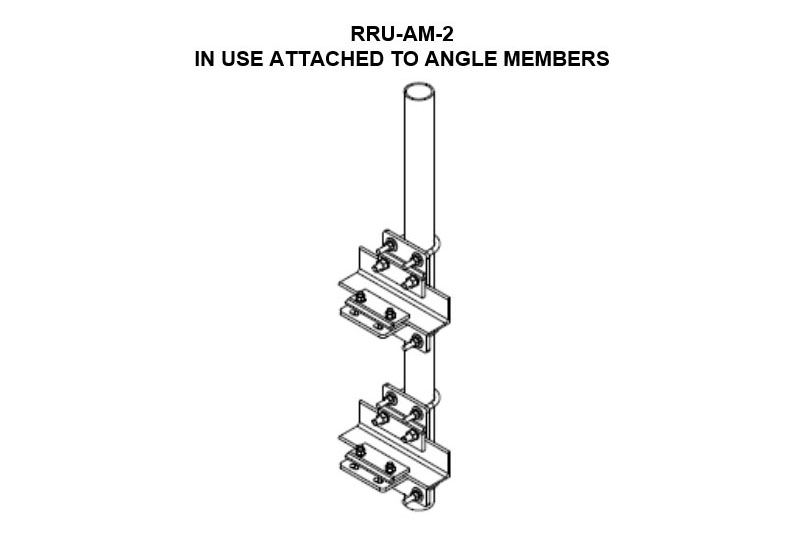

Outline drawing
| Click on image to enlarge. |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Angle brackets | Attachment hardware |
| Packaging quantity | 2 |
| Weight, net | 15.8 lb | 34.833 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | Mounting kit |
General specifications
| Mounting | Angle Members 50.8 –76.2 mm (2 in to 3 in) |
| Pipe, quantity | 0 |
Dimensions
| Height | 292.1 mm | 11.5 in |
| Width | 152.4 mm | 6 in |
| Length | 162.56 mm | 6.4 in |
| Mounting Diameter, maximum | 76.2 mm | 3 in |
| Mounting Diameter, minimum | 50.8 mm | 2 in |
| Pipe Outer Diameter | 73.66 mm | 2.9 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Angle brackets | Attachment hardware |
| Packaging quantity | 2 |
| Weight, net | 15.8 lb | 34.833 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
