RRU-AM-1
Base product: RRU-MOUNTS
RRU Angle Mount Kit for Angle Sector Frame Members (mounts 1.88 to 3.5in OD pipes to back of 90 degree angles 1.5in to 3in - Pipe not incl)
Specifications
Product classification
| Product Type | Mounting kit |
General specifications
| Mounting | Angle Members 38.1–76.2 mm (1-1/2 in to 3 in) |
| Pipe, quantity | 0 |
Dimensions
| Height | 228.6 mm | 9 in |
| Width | 170.18 mm | 6.7 in |
| Length | 101.6 mm | 4 in |
| Mounting Diameter, maximum | 76.2 mm | 3 in |
| Mounting Diameter, minimum | 38.1 mm | 1.5 in |
| Pipe Outer Diameter | 48.26 mm | 1.9 in | 88.9 mm | 3.5 in |

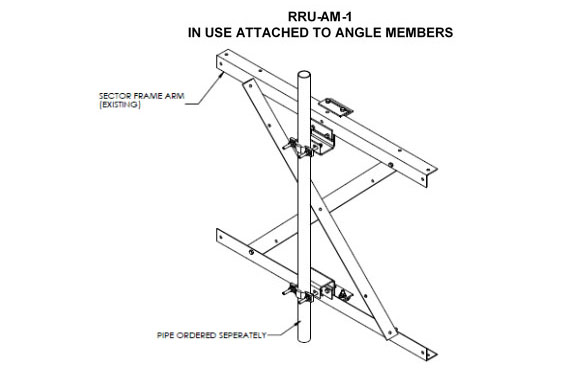

Outline drawing
| Click on image to enlarge. |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Angle brackets | Attachment hardware |
| Packaging quantity | 2 |
| Weight, net | 10.9 lb | 24.03 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | Mounting kit |
General specifications
| Mounting | Angle Members 38.1–76.2 mm (1-1/2 in to 3 in) |
| Pipe, quantity | 0 |
Dimensions
| Height | 228.6 mm | 9 in |
| Width | 170.18 mm | 6.7 in |
| Length | 101.6 mm | 4 in |
| Mounting Diameter, maximum | 76.2 mm | 3 in |
| Mounting Diameter, minimum | 38.1 mm | 1.5 in |
| Pipe Outer Diameter | 48.26 mm | 1.9 in | 88.9 mm | 3.5 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Angle brackets | Attachment hardware |
| Packaging quantity | 2 |
| Weight, net | 10.9 lb | 24.03 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
