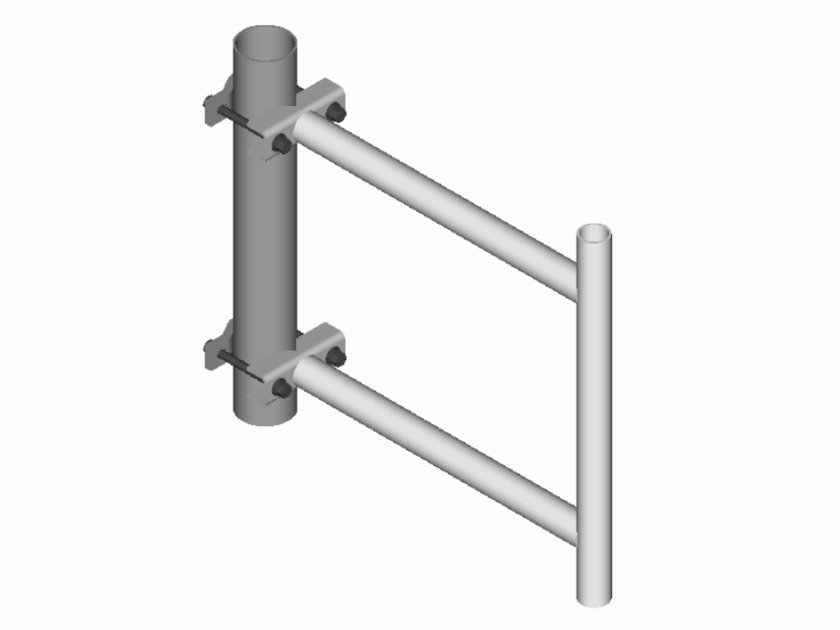

S-400
Stand-Off Bracket, 48 in, includes pipe
Specifications
Product classification
| Product Type | Stand-off mount |
General specifications
| Mounting | Straight or tapered legs up to 88.9 mm (3-1/2 in) OD, clamps included |
| Pipe, quantity | 1 |
| Tower Taper | Non-tapered | Tapered |
Dimensions
| Height | 812.8 mm | 32 in |
| Width | 127 mm | 5 in |
| Length | 1219.2 mm | 48 in |
| Pipe Length | 812.8 mm | 32 in |
| Stand-off Distance | 1219.2 mm | 48 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and weights
| Included | Clamps | Stand-off |
| Packaging quantity | 1 |
| Weight, net | 26.27 kg | 57.915 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | Stand-off mount |
General specifications
| Mounting | Straight or tapered legs up to 88.9 mm (3-1/2 in) OD, clamps included |
| Pipe, quantity | 1 |
| Tower Taper | Non-tapered | Tapered |
Dimensions
| Height | 812.8 mm | 32 in |
| Width | 127 mm | 5 in |
| Length | 1219.2 mm | 48 in |
| Pipe Length | 812.8 mm | 32 in |
| Stand-off Distance | 1219.2 mm | 48 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and weights
| Included | Clamps | Stand-off |
| Packaging quantity | 1 |
| Weight, net | 26.27 kg | 57.915 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
