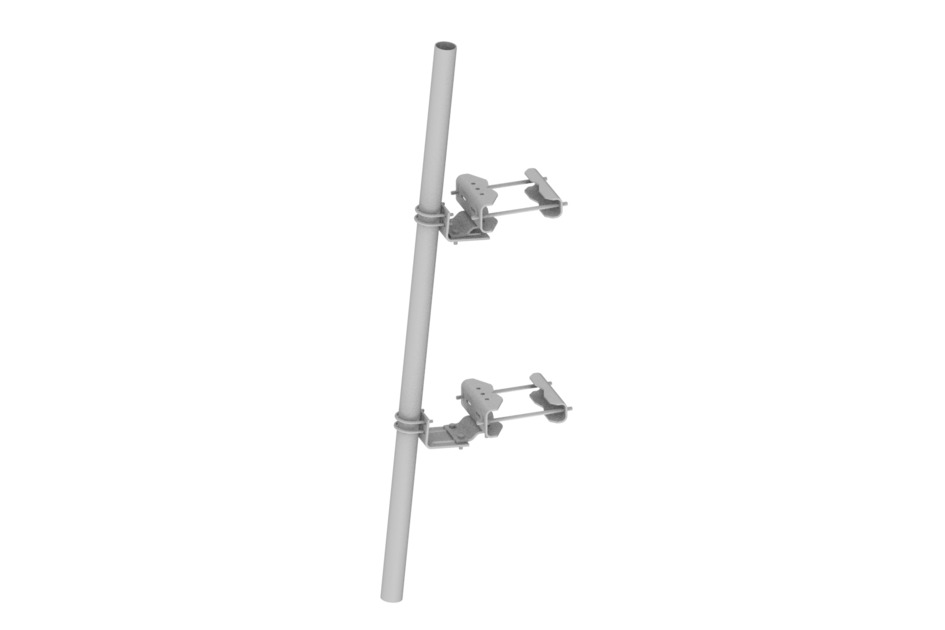

PM-SU35-96
Universal Sliding Pipe Mount Kit for 3-1/2 in OD x 96 in pipe
Specifications
Product classification
| Product Type | Pipe mount |
General specifications
| Mounting | Angle 60°, 203.2 mm (8 in) | Angle 90°, 152.4 mm (6 in) | Straight or tapered legs up to 203.2 mm (8 in) OD |
| Pipe, quantity | 1 |
| Tower Taper | Tapered |
Dimensions
| Height | 2438.4 mm | 96 in |
| Width | 304.8 mm | 12 in |
| Length | 304.8 mm | 12 in |
| Pipe Length | 2438.4 mm | 96 in |
| Mounting Diameter, maximum | 203.2 mm | 8 in |
| Mounting Diameter, minimum | 38.100 mm | 1.5 in |
| Pipe Outer Diameter | 88.900 mm | 3.5 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Pipe | Sliding pipe mount brackets | Universal saddle mount |
| Packaging quantity | 1 |
| Weight, net | 54.7 kg | 120.593 lb |
Product classification
| Product Type | Pipe mount |
General specifications
| Mounting | Angle 60°, 203.2 mm (8 in) | Angle 90°, 152.4 mm (6 in) | Straight or tapered legs up to 203.2 mm (8 in) OD |
| Pipe, quantity | 1 |
| Tower Taper | Tapered |
Dimensions
| Height | 2438.4 mm | 96 in |
| Width | 304.8 mm | 12 in |
| Length | 304.8 mm | 12 in |
| Pipe Length | 2438.4 mm | 96 in |
| Mounting Diameter, maximum | 203.2 mm | 8 in |
| Mounting Diameter, minimum | 38.100 mm | 1.5 in |
| Pipe Outer Diameter | 88.900 mm | 3.5 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Pipe | Sliding pipe mount brackets | Universal saddle mount |
| Packaging quantity | 1 |
| Weight, net | 54.7 kg | 120.593 lb |
