CM-606-B

Chain Mount Base Kit, 14 in stand-off 16 ft chain

Finish making your selections or clear them to view relevant specifications.
Download specifications
Find a partner

Product classification

Product Type Chain mount kit

General specifications

Chains, quantity 2
Pipe, quantity 0
Sectors, quantity 6

Dimensions

Height 152.4 mm | 6 in
Width 203.2 mm | 8 in
Length 203.2 mm | 8 in
Chain Length 4902.2 mm | 193 in
Mounting Diameter, maximum 1524 mm | 60 in
Mounting Diameter, minimum 355.6 mm | 14 in
Pipe Outer Diameter 60.96 mm | 2.4 in
Mounting Circumference, maximum 4775.2 mm | 188 in
Mounting Circumference, minimum 635 mm | 25 in

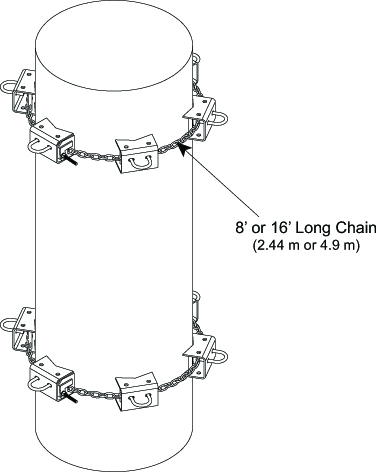

Outline drawing

Click on image to enlarge.

Material specifications

Material Type Hot dip galvanized steel

Mechanical specifications

Wind Rating 120 mph (BWS) at 100 ft AGL
Wind Rating Criteria One 96 in x 10 in panel antenna per sector
Wind Rating Test Method TIA/EIA-222

Packaging and weights

Included Brackets | Chains | Hardware
Packaging quantity 1
Weight, net 36.3 kg | 80.028 lb

Regulatory compliance/certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system

Product classification

Product Type Chain mount kit

General specifications

Chains, quantity 2
Pipe, quantity 0
Sectors, quantity 6

Dimensions

Height 152.4 mm | 6 in
Width 203.2 mm | 8 in
Length 203.2 mm | 8 in
Chain Length 4902.2 mm | 193 in
Mounting Diameter, maximum 1524 mm | 60 in
Mounting Diameter, minimum 355.6 mm | 14 in
Pipe Outer Diameter 60.96 mm | 2.4 in
Mounting Circumference, maximum 4775.2 mm | 188 in
Mounting Circumference, minimum 635 mm | 25 in

Material specifications

Material Type Hot dip galvanized steel

Mechanical specifications

Wind Rating 120 mph (BWS) at 100 ft AGL
Wind Rating Criteria One 96 in x 10 in panel antenna per sector
Wind Rating Test Method TIA/EIA-222

Packaging and weights

Included Brackets | Chains | Hardware
Packaging quantity 1
Weight, net 36.3 kg | 80.028 lb
Click on image to enlarge.

Regulatory compliance/certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system

Assembly drawing

Six-Sector Chain Mount

Product compliance documentation

Global Trade Data
Statement of Compliance RoHS/REACH

Product specification

CM-606-B Product specifications

Warranty

ANDREW Terms, Conditions and Warranty

Assembly drawing

Six-Sector Chain Mount

Product compliance documentation

Global Trade Data
Statement of Compliance RoHS/REACH

Product specification

CM-606-B Product specifications

Warranty

ANDREW Terms, Conditions and Warranty
