IC-1010-B
Base product: ICE-CANOPIES
Ice Canopy, 10 ft x 10 ft, four 13 ft 4 in burial pipes
Specifications
Product classification
| Product Type | Ice canopies and shields |
General specifications
| Pipe, quantity | 4 |
Dimensions
| Height | 4064 mm | 160 in |
| Width | 3048 mm | 120 in |
| Length | 3048 mm | 120 in |
| Pipe Length | 4064 mm | 160 in |

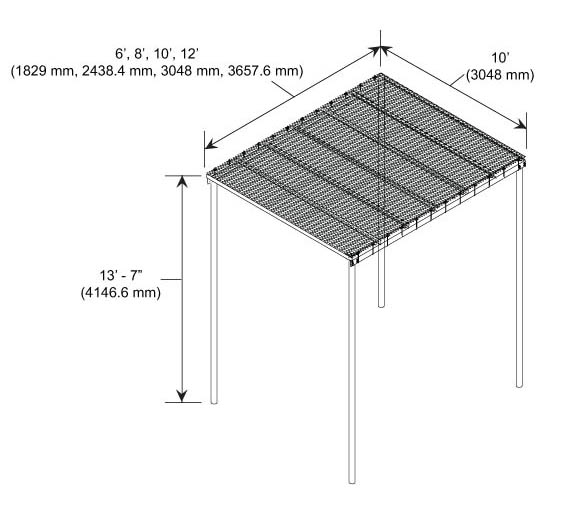

Outline drawing
| Click on image to enlarge. |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Hardware | Legs | Safety grating |
| Packaging quantity | 1 |
| Weight, net | 375 kg | 826.732 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Product classification
| Product Type | Ice canopies and shields |
General specifications
| Pipe, quantity | 4 |
Dimensions
| Height | 4064 mm | 160 in |
| Width | 3048 mm | 120 in |
| Length | 3048 mm | 120 in |
| Pipe Length | 4064 mm | 160 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Hardware | Legs | Safety grating |
| Packaging quantity | 1 |
| Weight, net | 375 kg | 826.732 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Documentation & downloads
Assembly drawing
Product specification
Assembly drawing
Product compliance documentation
Product specification
