EQ-PB
Base product: PLATFORM-ACCESSORIES
Post Brackets for EQ-P Series Platforms
Specifications
Product classification
| Product Type | Equipment platform system |
General specifications
| Mounting | EQ series platform bases |
Dimensions
| Height | 203.2 mm | 8 in |
| Width | 203.2 mm | 8 in |
| Length | 304.8 mm | 12 in |

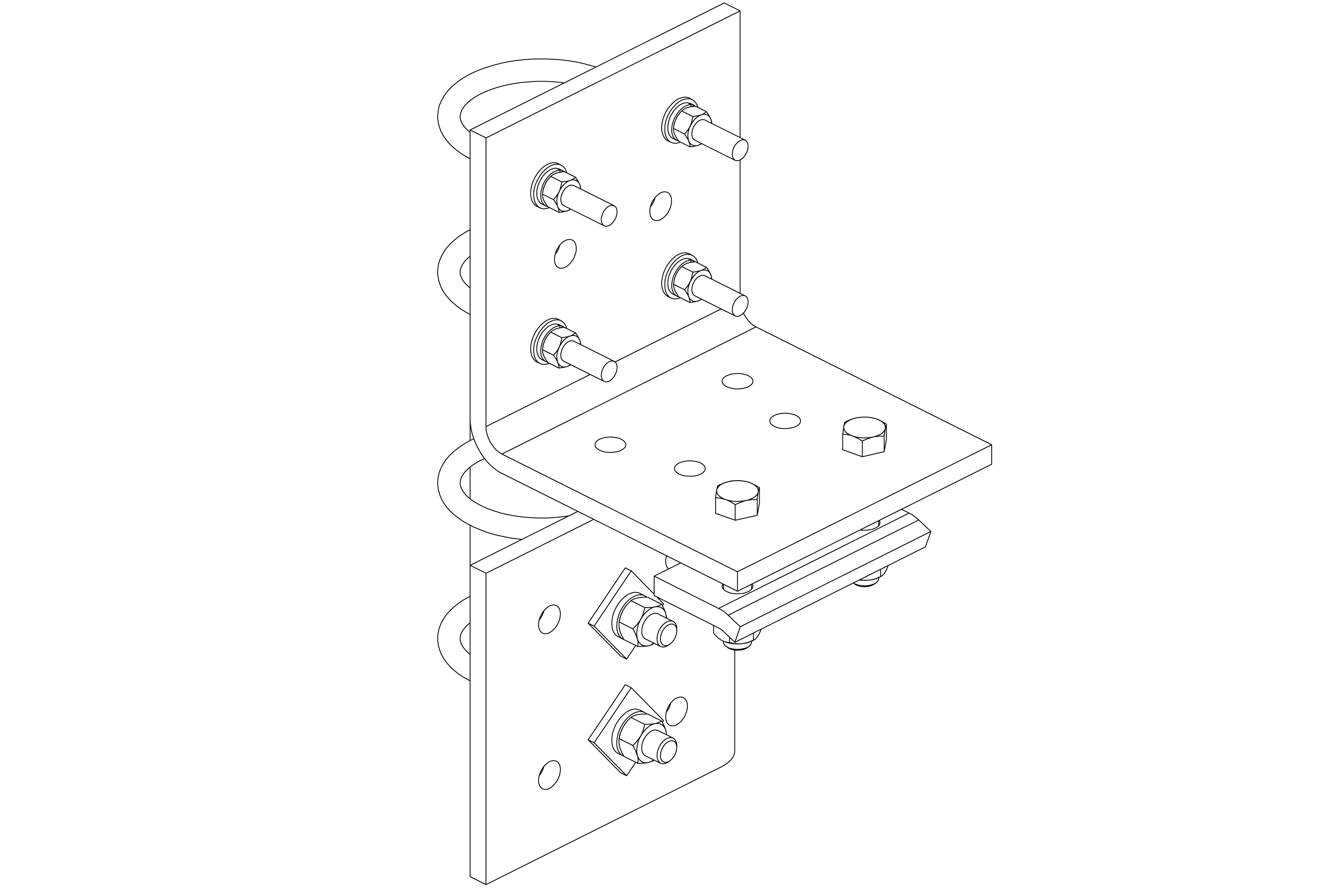

Outline drawing
| Click on image to enlarge. |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Brackets | Hardware |
| Packaging quantity | 1 |
| Weight, net | 32.7 kg | 72.091 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Product classification
| Product Type | Equipment platform system |
General specifications
| Mounting | EQ series platform bases |
Dimensions
| Height | 203.2 mm | 8 in |
| Width | 203.2 mm | 8 in |
| Length | 304.8 mm | 12 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Brackets | Hardware |
| Packaging quantity | 1 |
| Weight, net | 32.7 kg | 72.091 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
