ZB-V12
Base product: WGB-AND-MISC-CABLE-SUPPORTS
Vertical Z-bracket, 4.3 in, for 12 coaxial cable runs
Specifications
Product classification
| Product Type | Z-Bracket |
General specifications
| Application | Waveguide bridge kit, 12 in | Waveguide bridge kit, 24 in |
| Cable Runs, quantity | 12 |
| Hole, quantity | 12 |
| Mounting | Waveguide bridge channel or surface |
Dimensions
| Height | 109.22 mm | 4.3 in |
| Width | 109.22 mm | 4.3 in |
| Length | 485.14 mm | 19.1 in |
| Hole Size | 3/4 in | 7/16 in |

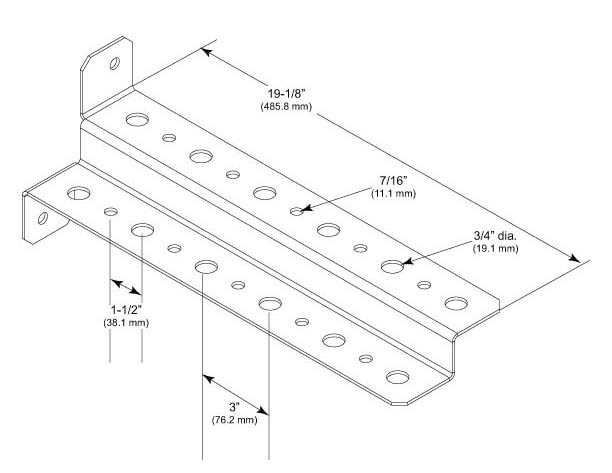

Outline drawing
| Click on image to enlarge. |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Brackets |
| Packaging quantity | 1 |
| Weight, net | 1.8 kg | 3.968 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | Z-Bracket |
General specifications
| Application | Waveguide bridge kit, 12 in | Waveguide bridge kit, 24 in |
| Cable Runs, quantity | 12 |
| Hole, quantity | 12 |
| Mounting | Waveguide bridge channel or surface |
Dimensions
| Height | 109.22 mm | 4.3 in |
| Width | 109.22 mm | 4.3 in |
| Length | 485.14 mm | 19.1 in |
| Hole Size | 3/4 in | 7/16 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Brackets |
| Packaging quantity | 1 |
| Weight, net | 1.8 kg | 3.968 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
