WB-TS12

Base product: WGB-AND-MISC-CABLE-SUPPORTS

Trapeze Kit, 12 in wide, one rung

Finish making your selections or clear them to view relevant specifications.
Download specifications
Find a partner

Product classification

Product Type Trapeze kit

General specifications

Application Waveguide bridge kit, 12 in
Cable Runs, quantity 4
Hole, quantity 4
Mounting Waveguide bridge channel
Rungs, quantity 1

Dimensions

Height 76.2 mm | 3 in
Width 304.8 mm | 12 in
Length 76.2 mm | 3 in
Hole Size 3/4 in | 7/16 in

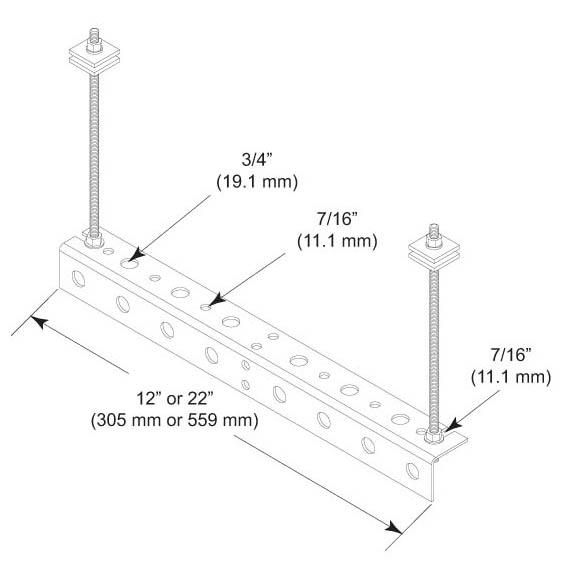

Outline drawing

Click on image to enlarge.

Material specifications

Material Type Hot dip galvanized steel

Packaging and weights

Included Angle brackets | Hardware | Threaded rod
Packaging quantity 1
Weight, net 1.3 kg | 2.866 lb

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
UK-ROHS Compliant
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance

Product classification

Product Type Trapeze kit

General specifications

Application Waveguide bridge kit, 12 in
Cable Runs, quantity 4
Hole, quantity 4
Mounting Waveguide bridge channel
Rungs, quantity 1

Dimensions

Height 76.2 mm | 3 in
Width 304.8 mm | 12 in
Length 76.2 mm | 3 in
Hole Size 3/4 in | 7/16 in

Material specifications

Material Type Hot dip galvanized steel

Packaging and weights

Included Angle brackets | Hardware | Threaded rod
Packaging quantity 1
Weight, net 1.3 kg | 2.866 lb
Click on image to enlarge.

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
UK-ROHS Compliant
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance

Assembly drawing

Trapeze Kit, 12 in, 1 rungs
