WB-T24-3
Base product: WGB-AND-MISC-CABLE-SUPPORTS
Trapeze Kit, triple tee, 24 in wide, three rungs
Specifications
Product classification
| Product Type | Trapeze kit |
General specifications
| Application | Waveguide bridge kit, 24 in |
| Cable Runs, quantity | 24 |
| Hole, quantity | 24 |
| Mounting | Waveguide bridge channel |
| Rungs, quantity | 3 |
Dimensions
| Height | 76.2 mm | 3 in |
| Width | 609.6 mm | 24 in |
| Length | 635 mm | 25 in |
| Hole Size | 3/4 in | 7/16 in |

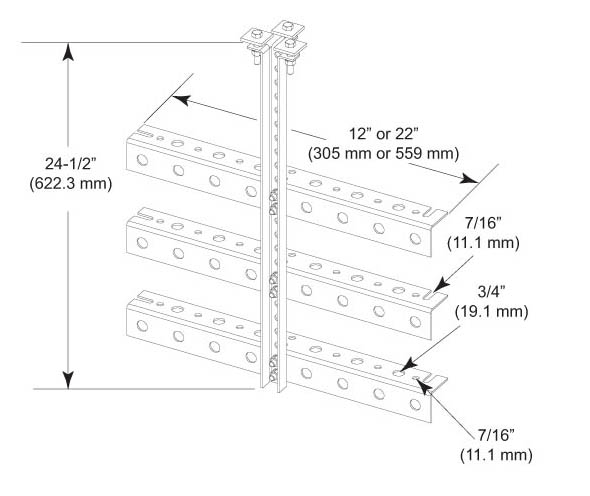

Outline drawing
| Click on image to enlarge. |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Angle brackets | Mounting hardware |
| Packaging quantity | 1 |
| Weight, net | 5.9 kg | 13.007 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | Trapeze kit |
General specifications
| Application | Waveguide bridge kit, 24 in |
| Cable Runs, quantity | 24 |
| Hole, quantity | 24 |
| Mounting | Waveguide bridge channel |
| Rungs, quantity | 3 |
Dimensions
| Height | 76.2 mm | 3 in |
| Width | 609.6 mm | 24 in |
| Length | 635 mm | 25 in |
| Hole Size | 3/4 in | 7/16 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Angle brackets | Mounting hardware |
| Packaging quantity | 1 |
| Weight, net | 5.9 kg | 13.007 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
