VC-WGSO-2

Base product: WATER-TOWER-SUPPORTS

Water Tower Waveguide Stand-Off Bracket for coaxial cable, two runs

Finish making your selections or clear them to view relevant specifications.
Download specifications
Find a partner

Product classification

Product Type Waveguide stand-off bracket

General specifications

Cable Runs, quantity 2
Hole, quantity 2
Mounting Water tower surface

Dimensions

Height 76.2 mm | 3 in
Width 152.4 mm | 6 in
Length 165.1 mm | 6.5 in
Hole Size 3/4 in | 7/16 in
Stand-off Distance 152.4 mm | 6 in

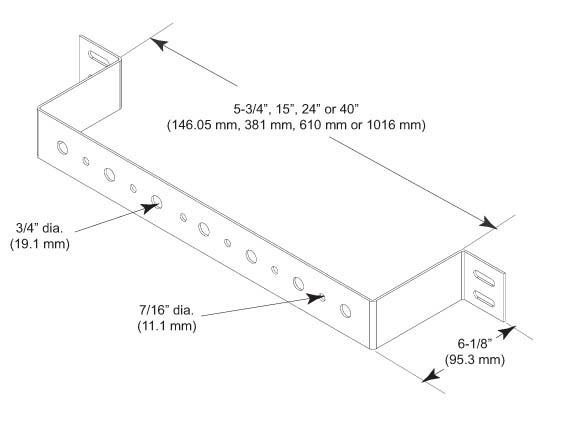

Outline drawing

Click on image to enlarge.

Material specifications

Material Type Hot dip galvanized steel

Packaging and weights

Included Brackets
Packaging quantity 1
Weight, net 1.1 kg | 2.425 lb

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
UK-ROHS Compliant
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance
