CS-B-R2
Base product: WGB-AND-MISC-CABLE-SUPPORTS
Cluster Support Bracket, large version
Specifications
Product classification
| Product Type | Cluster Support Bracket |
General specifications
| Cable Runs, quantity | 7 |
| Hole, quantity | 7 |
| Mounting | Cluster support |
Dimensions
| Height | 127 mm | 5 in |
| Width | 228.6 mm | 9 in |
| Length | 203.2 mm | 8 in |
| Mounting Diameter, maximum | 127 mm | 5 in |
| Mounting Diameter, minimum | 50.8 mm | 2 in |
| Pipe Outer Diameter | 60.96 mm | 2.4 in |
| Hole Size | 3/4 in | 7/16 in |

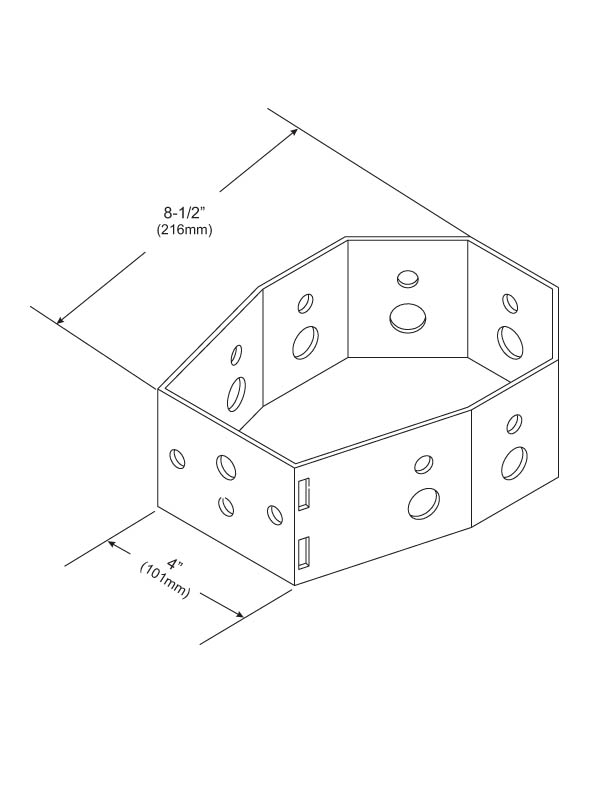

Outline drawing
| Click on image to enlarge. |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Brackets |
| Packaging quantity | 1 |
| Weight, net | 3.2 kg | 7.055 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | Cluster Support Bracket |
General specifications
| Cable Runs, quantity | 7 |
| Hole, quantity | 7 |
| Mounting | Cluster support |
Dimensions
| Height | 127 mm | 5 in |
| Width | 228.6 mm | 9 in |
| Length | 203.2 mm | 8 in |
| Mounting Diameter, maximum | 127 mm | 5 in |
| Mounting Diameter, minimum | 50.8 mm | 2 in |
| Pipe Outer Diameter | 60.96 mm | 2.4 in |
| Hole Size | 3/4 in | 7/16 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Brackets |
| Packaging quantity | 1 |
| Weight, net | 3.2 kg | 7.055 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
