B2252PGL
Base product: WGB-AND-MISC-CABLE-SUPPORTS
Star Support Tee Bracket for up to 10-1/2 in OD round members and up to 7 in 90 degree and up to 10-1/2 in 60 degree angle members
Specifications
Product classification
| Product Type | Star Support Bracket |
General specifications
| Cable Runs, quantity | 16 |
| Hole, quantity | 16 |
| Mounting | Round and angle legs |
Dimensions
| Height | 101.6 mm | 4 in |
| Width | 304.8 mm | 12 in |
| Length | 254 mm | 10 in |
| Mounting Diameter, maximum | 266.700 mm | 10.5 in |
| Hole Size | 3/4 in | 7/16 in |

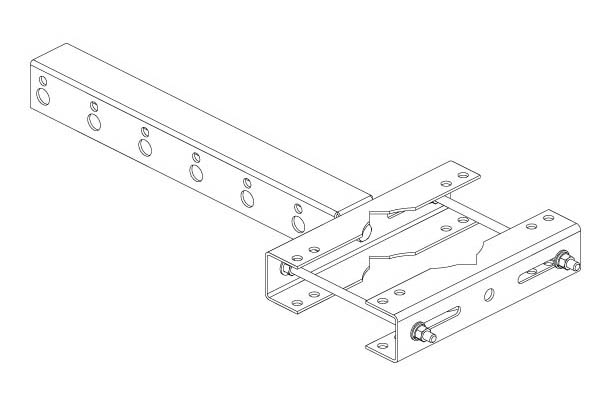

Outline drawing
| Click on image to enlarge. |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Brackets |
| Packaging quantity | 1 |
| Weight, net | 5.3 kg | 11.684 lb |
Product classification
| Product Type | Star Support Bracket |
General specifications
| Cable Runs, quantity | 16 |
| Hole, quantity | 16 |
| Mounting | Round and angle legs |
Dimensions
| Height | 101.6 mm | 4 in |
| Width | 304.8 mm | 12 in |
| Length | 254 mm | 10 in |
| Mounting Diameter, maximum | 266.700 mm | 10.5 in |
| Hole Size | 3/4 in | 7/16 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Brackets |
| Packaging quantity | 1 |
| Weight, net | 5.3 kg | 11.684 lb |
| Click on image to enlarge. |
