CTX192126T-DS-43 | E14F60P09
Twin Triplexer, PCS/AWS/WCS-BRS, DC Sense
Features and benefits
- BTS-to-feeder and feeder-to-antenna application
- Automatic dc switching with dc sense
- DC Load Sense in Feeder-to-Antenna applications
- Convertible mounting brackets
- New 4.3-10 connectors for improved PIM performance and size reduction
Specifications
Product classification
| Product Type | Triplexer |
General specifications
| Color | Gray |
| Common Port Label | Common |
| Mounting | Pole | Wall |
| Mounting Pipe Hardware | Band clamps (2) |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Interface Body Style | Long neck |
Dimensions
| Height | 147 mm | 5.787 in |
| Width | 177 mm | 6.969 in |
| Depth | 105 mm | 4.134 in |
| Ground Screw Diameter | 6 mm | 0.236 in |
| Mounting Pipe Diameter Range | 40–160 mm |

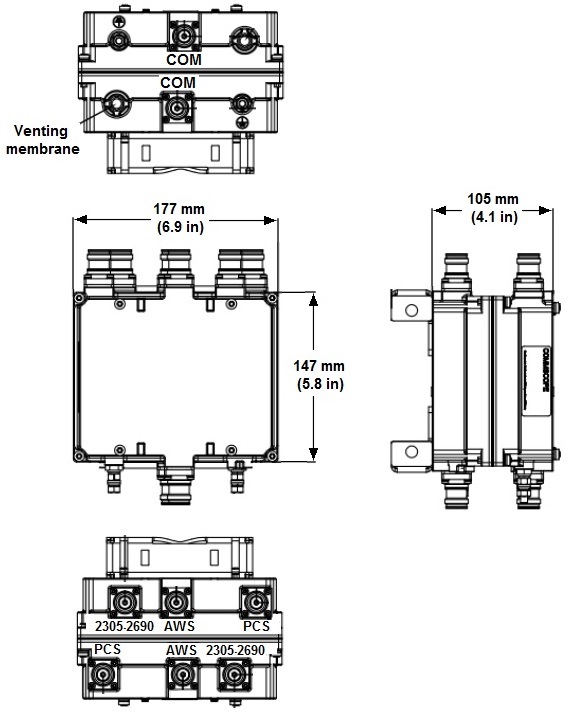

Outline drawing
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| License Band, Band Pass | AWS 1700 | PCS 1900 | TDD 1900 | TDD 2000 | WCS 2300 |
Electrical specifications, dc power/alarm
| dc/AISG Pass-through Method | Auto sensing |
| dc/AISG Pass-through Path | See logic table |
| Lightning Surge Current | 10 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
| Operating Current at Voltage | 10 mA @ 12 Vdc |
| Voltage | 7–30 Vdc |
Electrical specifications, aisg
| AISG Carrier | 2176 KHz ± 100 ppm |
| Insertion Loss, maximum | 1 dB |
| Return Loss, minimum | 15 dB |
Electrical specifications
| Sub-module | 1 | 1 | 1 |
| Branch | 1 | 2 | 3 |
| Port Designation | 1695-1780 & 2110-2200 | 1850-1995 | 2305-2690 |
| License Band | AWS 1700, Band Pass | PCS 1900, Band Pass | WCS 2300, Band Pass |
Electrical specifications, band pass
| Frequency Range, MHz | 1695–1780 2110–2200 |
1850-1995 | 2305–2690 |
| Insertion Loss, typical, dB | 0.30 | 0.30 | 0.30 |
| Total Group Delay, maximum, ns | 25 | 20 | 25 |
| Total Group Delay, typical, ns | 19 | 18 | 12 |
| Return Loss, typical, dB | 23 | 23 | 23 |
| Isolation, typical, dB | 53 | 53 | 53 |
| Input Power, RMS, maximum, W | 200 | 200 | 200 |
| Input Power, PEP, maximum, W | 2,000 | 2,000 | 2,000 |
| 3rd Order PIM, typical, dBc | -161 | -161 | |
| 3rd Order PIM Test Method | 2 x 20 W CW tones | 2 x 20 W CW tones | |
| Higher Order PIM, typical, dBc | -161 | ||
| Higher Order PIM Test Method | 2 x 20 W CW tones |

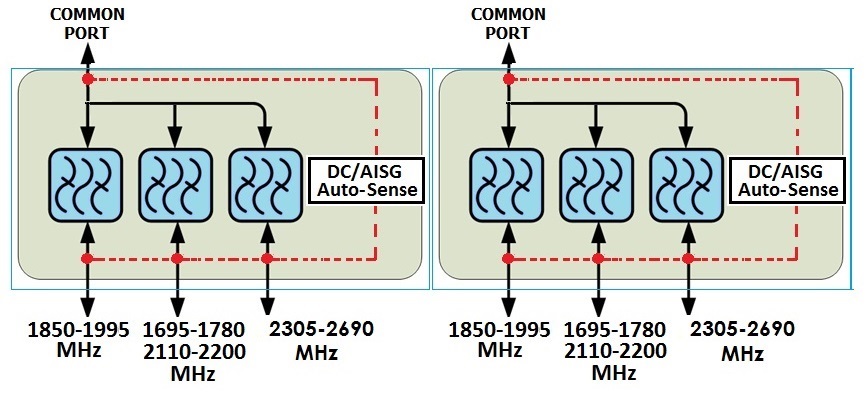

Block diagram
| Click on image to enlarge. |

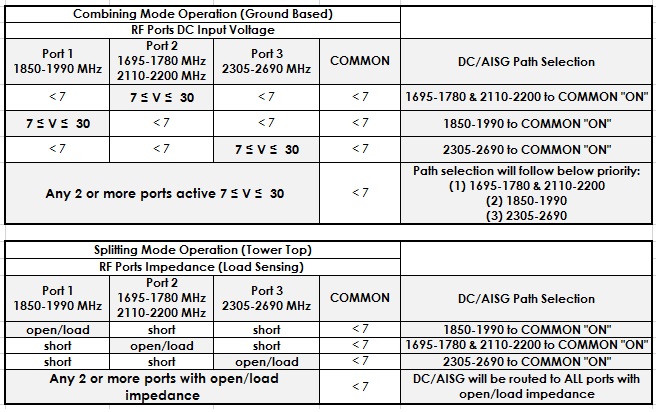

Logic table
| Click on image to enlarge. |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 13.0 N @ 150 km/h (2.9 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 13.0 N @ 150 km/h (2.9 lbf @ 150 km/h) |
Environmental specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Mounting hardware |
| Volume | 2.7 L |
| Weight, net | 4.2 kg | 9.259 lb |
Product classification
| Product Type | Triplexer |
General specifications
| Color | Gray |
| Common Port Label | Common |
| Mounting | Pole | Wall |
| Mounting Pipe Hardware | Band clamps (2) |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Interface Body Style | Long neck |
Dimensions
| Height | 147 mm | 5.787 in |
| Width | 177 mm | 6.969 in |
| Depth | 105 mm | 4.134 in |
| Ground Screw Diameter | 6 mm | 0.236 in |
| Mounting Pipe Diameter Range | 40–160 mm |
Electrical specifications
| Impedance | 50 ohm |
| License Band, Band Pass | AWS 1700 | PCS 1900 | TDD 1900 | TDD 2000 | WCS 2300 |
Electrical specifications, dc power/alarm
| dc/AISG Pass-through Method | Auto sensing |
| dc/AISG Pass-through Path | See logic table |
| Lightning Surge Current | 10 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
| Operating Current at Voltage | 10 mA @ 12 Vdc |
| Voltage | 7–30 Vdc |
Electrical specifications, aisg
| AISG Carrier | 2176 KHz ± 100 ppm |
| Insertion Loss, maximum | 1 dB |
| Return Loss, minimum | 15 dB |
Electrical specifications
| Sub-module | 1 | 1 | 1 |
| Branch | 1 | 2 | 3 |
| Port Designation | 1695-1780 & 2110-2200 | 1850-1995 | 2305-2690 |
| License Band | AWS 1700, Band Pass | PCS 1900, Band Pass | WCS 2300, Band Pass |
Electrical specifications, band pass
| Frequency Range, MHz | 1695–1780; 2110–2200 | 1850-1995 | 2305–2690 |
| Insertion Loss, typical, dB | 0.30 | 0.30 | 0.30 |
| Total Group Delay, maximum, ns | 25 | 20 | 25 |
| Total Group Delay, typical, ns | 19 | 18 | 12 |
| Return Loss, typical, dB | 23 | 23 | 23 |
| Isolation, typical, dB | 53 | 53 | 53 |
| Input Power, RMS, maximum, W | 200 | 200 | 200 |
| Input Power, PEP, maximum, W | 2,000 | 2,000 | 2,000 |
| 3rd Order PIM, typical, dBc | -161 | -161 | |
| 3rd Order PIM Test Method | 2 x 20 W CW tones | 2 x 20 W CW tones | |
| Higher Order PIM, typical, dBc | -161 | ||
| Higher Order PIM Test Method | 2 x 20 W CW tones |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 13.0 N @ 150 km/h (2.9 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 13.0 N @ 150 km/h (2.9 lbf @ 150 km/h) |
Environmental specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Mounting hardware |
| Volume | 2.7 L |
| Weight, net | 4.2 kg | 9.259 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
| Click on image to enlarge. |
