TD-PCS-1-B3B4-B5E | E15Z50P66
Twin Inband Diplexer PCS B3B4-B5E, DC sense
Specifications
Product classification
| Product Type | Diplexer |
General specifications
| Color | Gray |
| Connector Interface | 7-16 DIN Female |
Dimensions
| Height | 465 mm | 18.307 in |
| Width | 365 mm | 14.37 in |
| Depth | 90 mm | 3.543 in |

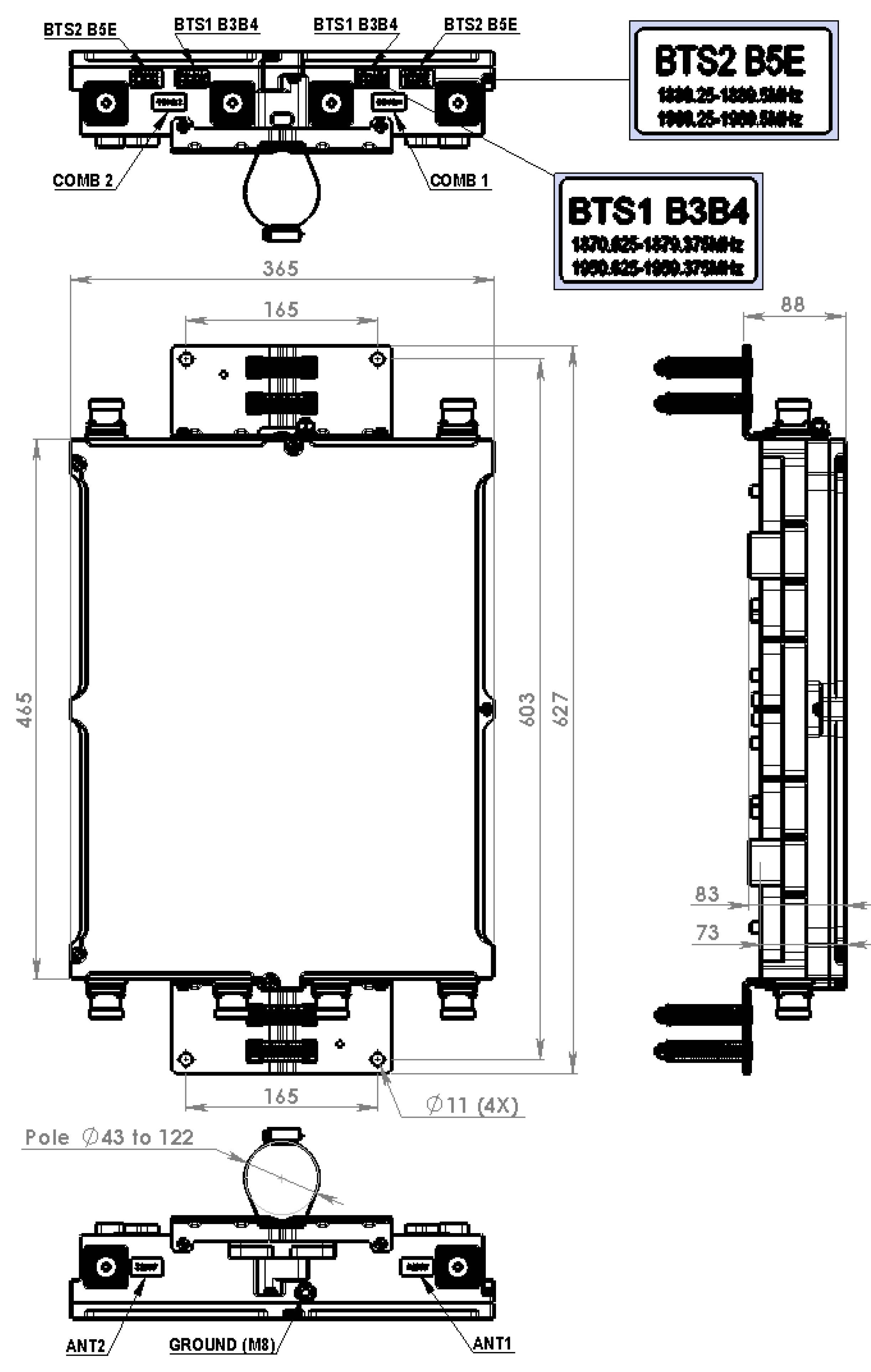

Outline drawing
| Click on image to enlarge. |
Electrical specifications
| 5th Order IMD Test Method | Two +43 dBm carriers |
| 5th Order IMD, maximum | -153 dBc |
Electrical specifications, rx (uplink)
| Frequency Band | 1870.625 – 1879.375 MHz |
| Insertion Loss, typical | 0.8 dB |
| Return Loss, typical | 18 dB |
| Isolation, typical | 28 dB |
| Total Group Delay, maximum | 250 ns |
Electrical specifications 2, rx (uplink)
| Frequency Band | 1880.25 – 1889.5 MHz |
| Isolation, typical | 28 dB |
| Insertion Loss, typical | 0.8 dB |
| Return Loss, minimum | 18 dB |
Electrical specifications, tx (downlink)
| Frequency Band | 1950.625 – 1959.375 MHz |
| Isolation, typical | 28 dB |
| Input Power, PEP, maximum | 3000 W |
| Input Power, RMS, maximum | 100 W |
| Insertion Loss, typical | 0.8 dB |
| Return Loss, typical | 18 dB |
Electrical specifications 2, tx (downlink)
| Frequency Band | 1960.25 – 1969.5 MHz |
| Insertion Loss, typical | 0.8 dB |
| Isolation, typical | 28 dB |
| Return Loss, minimum | 18 dB |
| Total Group Delay, maximum | 250 ns |

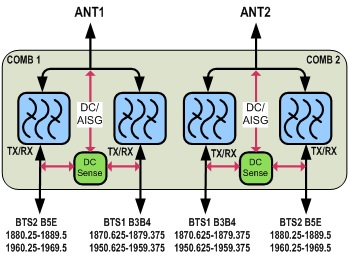

Block diagram
| Click on image to enlarge. |
Environmental specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Weight, net | 15.8 kg | 34.833 lb |
Product classification
| Product Type | Diplexer |
General specifications
| Color | Gray |
| Connector Interface | 7-16 DIN Female |
Dimensions
| Height | 465 mm | 18.307 in |
| Width | 365 mm | 14.37 in |
| Depth | 90 mm | 3.543 in |
Electrical specifications
| 5th Order IMD Test Method | Two +43 dBm carriers |
| 5th Order IMD, maximum | -153 dBc |
Electrical specifications, rx (uplink)
| Frequency Band | 1870.625 – 1879.375 MHz |
| Insertion Loss, typical | 0.8 dB |
| Return Loss, typical | 18 dB |
| Isolation, typical | 28 dB |
| Total Group Delay, maximum | 250 ns |
Electrical specifications 2, rx (uplink)
| Frequency Band | 1880.25 – 1889.5 MHz |
| Isolation, typical | 28 dB |
| Insertion Loss, typical | 0.8 dB |
| Return Loss, minimum | 18 dB |
Electrical specifications, tx (downlink)
| Frequency Band | 1950.625 – 1959.375 MHz |
| Isolation, typical | 28 dB |
| Input Power, PEP, maximum | 3000 W |
| Input Power, RMS, maximum | 100 W |
| Insertion Loss, typical | 0.8 dB |
| Return Loss, typical | 18 dB |
Electrical specifications 2, tx (downlink)
| Frequency Band | 1960.25 – 1969.5 MHz |
| Insertion Loss, typical | 0.8 dB |
| Isolation, typical | 28 dB |
| Return Loss, minimum | 18 dB |
| Total Group Delay, maximum | 250 ns |
Environmental specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Weight, net | 15.8 kg | 34.833 lb |
