TD-850A-05-43 | E14Z00P13
Twin In-Band Diplexer 850A , DC/AISG on LTE, 4.3-10 connectors
Features and benefits
- Enables LTE carrier to share the RF path with other UMTS services
- Optimized for 5 MHz LTE carrier on A-Block
- LTE port supports 850MHz EARFCN 2475 through 2477 (LTE_port_supp_2)
- UMTS port supports 850MHz UARFCN 4357 (UMTS_port_supp_2)
- Narrow guard band to maximize utilization of licensed spectrum
- DC/ASIG pass on LTE port
Specifications
Product classification
| Product Type | Diplexer |
Dimensions
| Height | 367 mm | 14.449 in |
| Width | 373 mm | 14.685 in |
| Depth | 142 mm | 5.591 in |
| Ground Screw Diameter | 6 mm | 0.236 in |

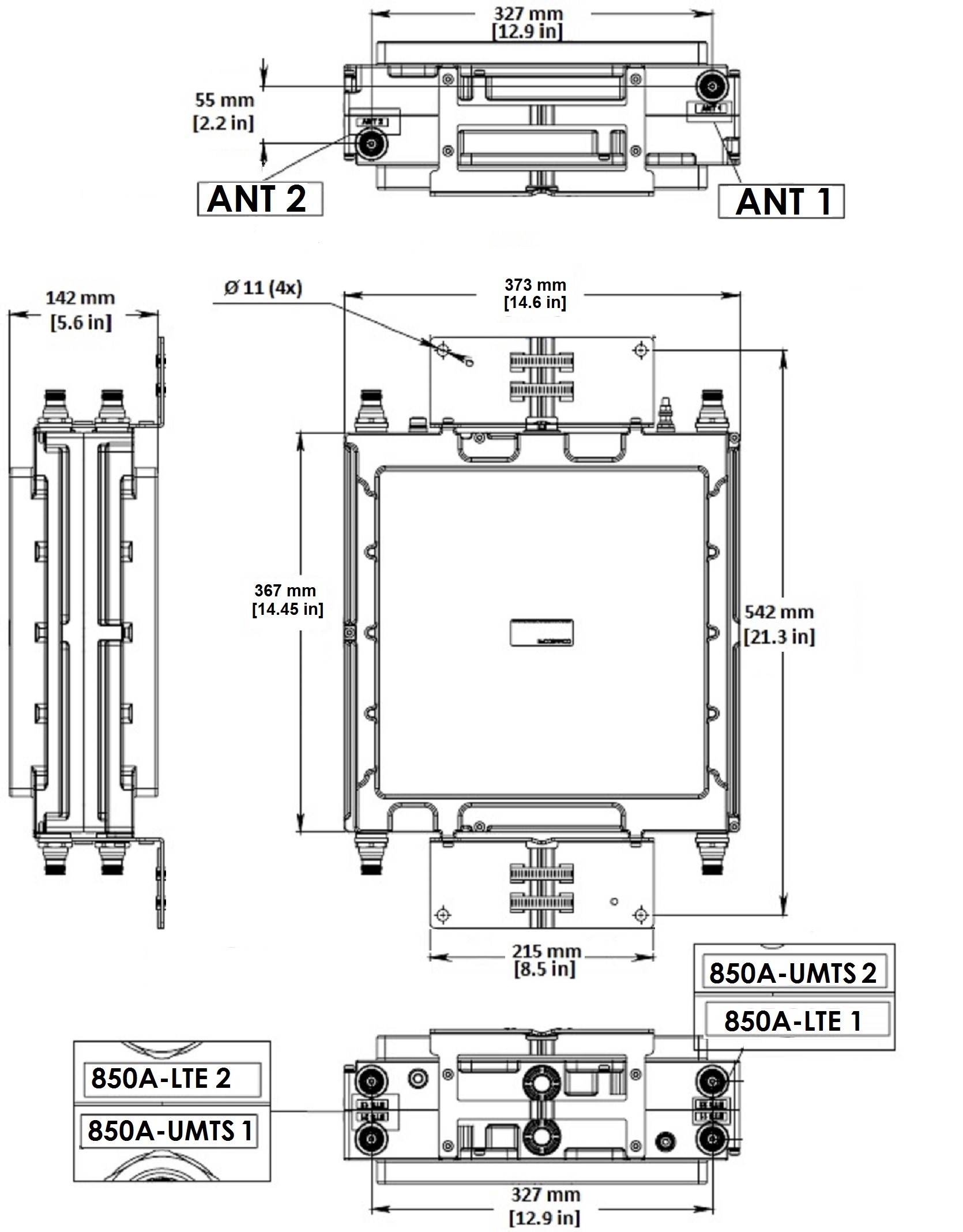

Outline drawing
| Click on image to enlarge. |
Electrical specifications
| 5th Order IMD Test Method | Two +43 dBm carriers |
| 5th Order IMD, maximum | -155 dBc |
| License Band | CEL 850 |
| Lightning Surge Current | 10 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
Electrical specifications, rx (uplink)
| Frequency Band | 829.25 – 833.95 MHz |
| Insertion Loss, maximum | 1.8 dB |
| Return Loss, minimum | 18 dB |
| Isolation, minimum | 27 dB |
| Port Designation | 850A-LTE |
| Total Group Delay, maximum | 380 ns |
Electrical specifications 2, rx (uplink)
| Frequency Band | 824.25 – 828.42 MHz |
| Isolation, minimum | 27 dB |
| Port Designation | 850A-UMTS |
| Total Group Delay, maximum | 380 ns |
| Insertion Loss, maximum | 1.8 dB |
| Return Loss, minimum | 18 dB |
Electrical specifications, tx (downlink)
| Frequency Band | 874.25 – 878.95 MHz |
| Isolation, minimum | 27 dB |
| Input Power, PEP, maximum | 120 W |
| Input Power, RMS, maximum | 750 W |
| Total Group Delay, maximum | 380 ns |
| Insertion Loss, maximum | 1.8 dB |
| Return Loss, minimum | 18 dB |
Electrical specifications 2, tx (downlink)
| Frequency Band | 869.25 – 873.42 MHz |
| Input Power, PEP, maximum | 120 W |
| Input Power, RMS, maximum | 750 W |
| Insertion Loss, maximum | 1.8 dB |
| Isolation, minimum | 27 dB |
| Return Loss, minimum | 18 dB |
| Total Group Delay, maximum | 380 ns |

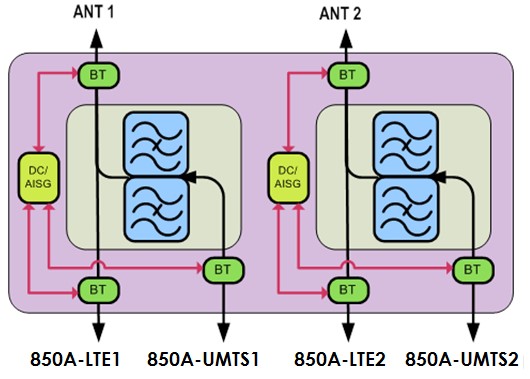

Block diagram
| Click on image to enlarge. |
Environmental specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Weight, net | 17.6 kg | 38.801 lb |
Product classification
| Product Type | Diplexer |
Dimensions
| Height | 367 mm | 14.449 in |
| Width | 373 mm | 14.685 in |
| Depth | 142 mm | 5.591 in |
| Ground Screw Diameter | 6 mm | 0.236 in |
Electrical specifications
| 5th Order IMD Test Method | Two +43 dBm carriers |
| 5th Order IMD, maximum | -155 dBc |
| License Band | CEL 850 |
| Lightning Surge Current | 10 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
Electrical specifications, rx (uplink)
| Frequency Band | 829.25 – 833.95 MHz |
| Insertion Loss, maximum | 1.8 dB |
| Return Loss, minimum | 18 dB |
| Isolation, minimum | 27 dB |
| Port Designation | 850A-LTE |
| Total Group Delay, maximum | 380 ns |
Electrical specifications 2, rx (uplink)
| Frequency Band | 824.25 – 828.42 MHz |
| Isolation, minimum | 27 dB |
| Port Designation | 850A-UMTS |
| Total Group Delay, maximum | 380 ns |
| Insertion Loss, maximum | 1.8 dB |
| Return Loss, minimum | 18 dB |
Electrical specifications, tx (downlink)
| Frequency Band | 874.25 – 878.95 MHz |
| Isolation, minimum | 27 dB |
| Input Power, PEP, maximum | 120 W |
| Input Power, RMS, maximum | 750 W |
| Total Group Delay, maximum | 380 ns |
| Insertion Loss, maximum | 1.8 dB |
| Return Loss, minimum | 18 dB |
Electrical specifications 2, tx (downlink)
| Frequency Band | 869.25 – 873.42 MHz |
| Input Power, PEP, maximum | 120 W |
| Input Power, RMS, maximum | 750 W |
| Insertion Loss, maximum | 1.8 dB |
| Isolation, minimum | 27 dB |
| Return Loss, minimum | 18 dB |
| Total Group Delay, maximum | 380 ns |
Environmental specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Weight, net | 17.6 kg | 38.801 lb |
