D-AWS-10-A-CDEF
AWS In-Band Diplexer Tuning version 1A, AWS A/CDEF Bands with AISG/DC Sense
Specifications
Product classification
| Product Type | Diplexer |
General specifications
| Application | Indoor | Outdoor |
| Antenna Interface | 7-16 DIN Female |
| Connector Interface Style | Long neck |
| Rx Interface | 7-16 DIN Female |
Dimensions
| Height | 203 mm | 7.992 in |
| Width | 273 mm | 10.748 in |
| Depth | 50 mm | 1.969 in |
| Ground Screw Diameter | 5 mm | 0.197 in |
Electrical specifications, rx (uplink)
| Frequency Band | 1710 – 1720 MHz |
| Insertion Loss, typical | 0.5 dB |
| Return Loss, minimum | 18 dB |
| Isolation, minimum | 25 dB |
Electrical specifications 2, rx (uplink)
| Frequency Band | 1730 – 1755 MHz |
| Isolation, minimum | 25 dB |
| Insertion Loss, typical | 0.5 dB |
| Return Loss, minimum | 18 dB |
Electrical specifications, tx (downlink)
| Frequency Band | 2110 – 2120 MHz |
| Isolation, minimum | 30 dB |
| Input Power, PEP, maximum | 5000 W |
| Total Group Delay, maximum | 50 ns |
| Insertion Loss, typical | 0.5 dB |
| Return Loss, minimum | 18 dB |
Electrical specifications 2, tx (downlink)
| Frequency Band | 2130 – 2155 MHz |
| Input Power, PEP, maximum | 5000 W |
| Insertion Loss, typical | 0.5 dB |
| Isolation, minimum | 30 dB |
| Return Loss, minimum | 18 dB |
| Total Group Delay, maximum | 50 ns |

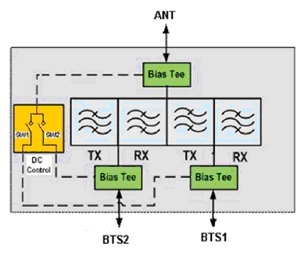

Block diagram
| Click on image to enlarge. |
Environmental specifications
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Brackets |
| Weight, without mounting hardware | 3.2 kg | 7.055 lb |
Product classification
| Product Type | Diplexer |
General specifications
| Application | Indoor | Outdoor |
| Antenna Interface | 7-16 DIN Female |
| Connector Interface Style | Long neck |
| Rx Interface | 7-16 DIN Female |
Dimensions
| Height | 203 mm | 7.992 in |
| Width | 273 mm | 10.748 in |
| Depth | 50 mm | 1.969 in |
| Ground Screw Diameter | 5 mm | 0.197 in |
Electrical specifications, rx (uplink)
| Frequency Band | 1710 – 1720 MHz |
| Insertion Loss, typical | 0.5 dB |
| Return Loss, minimum | 18 dB |
| Isolation, minimum | 25 dB |
Electrical specifications 2, rx (uplink)
| Frequency Band | 1730 – 1755 MHz |
| Isolation, minimum | 25 dB |
| Insertion Loss, typical | 0.5 dB |
| Return Loss, minimum | 18 dB |
Electrical specifications, tx (downlink)
| Frequency Band | 2110 – 2120 MHz |
| Isolation, minimum | 30 dB |
| Input Power, PEP, maximum | 5000 W |
| Total Group Delay, maximum | 50 ns |
| Insertion Loss, typical | 0.5 dB |
| Return Loss, minimum | 18 dB |
Electrical specifications 2, tx (downlink)
| Frequency Band | 2130 – 2155 MHz |
| Input Power, PEP, maximum | 5000 W |
| Insertion Loss, typical | 0.5 dB |
| Isolation, minimum | 30 dB |
| Return Loss, minimum | 18 dB |
| Total Group Delay, maximum | 50 ns |
Environmental specifications
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Brackets |
| Weight, without mounting hardware | 3.2 kg | 7.055 lb |

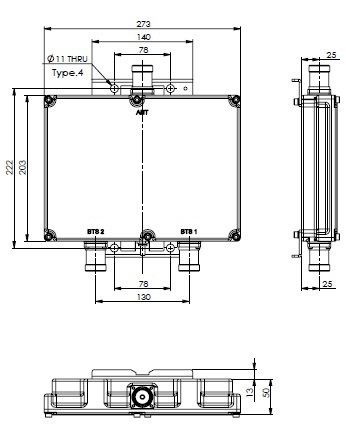

| Click on image to enlarge. |
