D15T01P32

Twin Hybrid Combiner

Finish making your selections or clear them to view relevant specifications.
Download specifications

Product classification

Product Type Hybrid combiner
Product Brand UltraBand

General specifications

AISG Carrier 2176 KHz ± 100 ppm
Color Gray
Connector Interface 7-16 DIN Female
Modularity Two-pack twin
Mounting Pole | Wall
Mounting Pipe Hardware Band clamps

Dimensions

Height 181 mm | 7.126 in
Width 371 mm | 14.606 in
Depth 86.5 mm | 3.406 in
Ground Screw Diameter 6 mm | 0.236 in

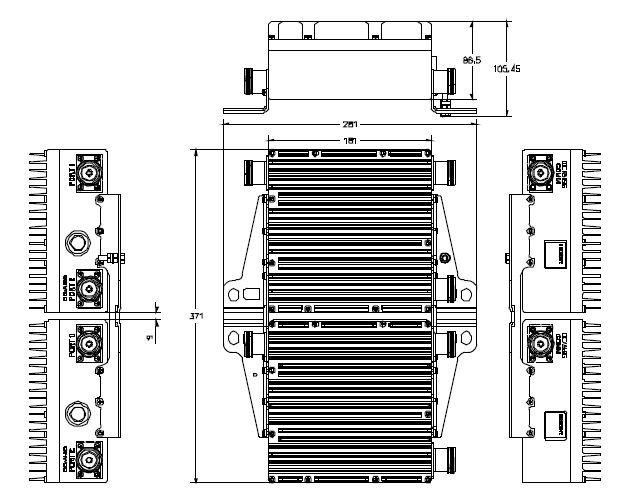

Outline drawing

Click on image to enlarge.

Electrical specifications

3rd Order IMD Test Method Two +43 dBm carriers
3rd Order IMD typical -160 dBc
dc Pass-through Branch 2
Lightning Surge Current 10 kA
Lightning Surge Current Waveform 8/20 waveform

Electrical specifications, aisg

dc Current, maximum 2.5 A
Insertion Loss, maximum 0.5 dB
Return Loss, minimum 16 dB

Electrical specifications, branch 1

Coupling 3.1 dB
Coupling Tolerance ±0.5 dB
Input Power, PEP 3000 W
Input Power, RMS 150 W
Isolation, typical 30 dB
Operating Frequency Band 698 – 2700 MHz
Port Designation Port 1
Insertion Loss Ripple, maximum ±0.4 dB
Return Loss, minimum 20 dB

Electrical specifications, branch 2

Coupling 3.1 dB
Coupling Tolerance ±0.5 dB
Input Power, PEP 3000 W
Input Power, RMS 150 W
Isolation, typical 30 dB
Operating Frequency Band 698 – 2700 MHz
Port Designation Port 2
Insertion Loss Ripple, maximum ±0.4 dB
Return Loss, minimum 20 dB

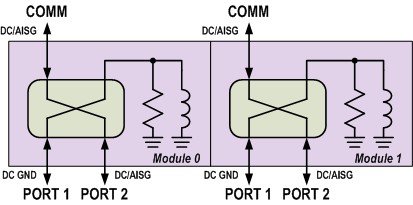

Block diagram

Click on image to enlarge.

Environmental specifications

Operating Temperature -40 °C to +65 °C (-40 °F to +149 °F)
Ingress Protection Test Method IEC 60529:2001, IP67

Packaging and weights

Included Mounting hardware
Weight, net 9 kg | 19.842 lb

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
UK-ROHS Compliant
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance
