CMW78

Base product

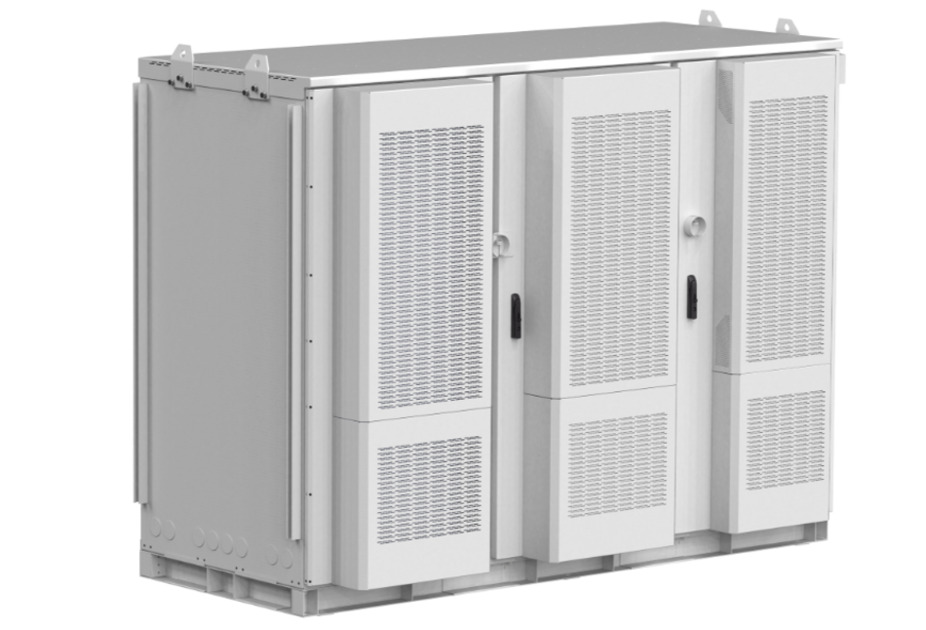

Base 3 Bay, 78” Equipment and Battery Outdoor Cabinet

Finish making your selections or clear them to view relevant specifications.

Download specifications

Find a partner

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Product variants

Configure and display product variants of CMW78 by selecting options

	Product	Battery Storage	Cabinet Type	Equipment Storage	Regional Availability	Product Series	Cooling	Rack Units	Material Type	Height	Width	Depth
	78W3-T8-A00D00-00 \| CMW78 CMW78 1x 4000W HEX and 2x 6000W HEXs Outdoor Multi-bay Cabinet Specifications	3 shelves	Multi-bay cabinet	92RU	North America	CMC	1x 4000W HEX and 2x 6000W HEXs	92	Aluminum	1879.600 mm \| 74 in	914.400 mm \| 36 in	939.800 mm \| 37 in

Features and benefits

The cabinet is designed to accommodate 6 strings of -48V VRLA batteries into one cabinet. This cabinet provides mechanical and environmental protection for the equipment inside.

Excellent Thermal Performance to ensure the battery could be applied in the harsh environment.
Provide option for security/access control via Puck Lock system.
Provide the flexible access for the cable entrance.
Provide the flexible heater Solution for the cold ambient application.
Platform products to share many parts including plinth, solar shield, and hybrid cable storage units.
Excellent cable management system.
