CMC8S
Base product
- Available in:
- Latin America
- North America

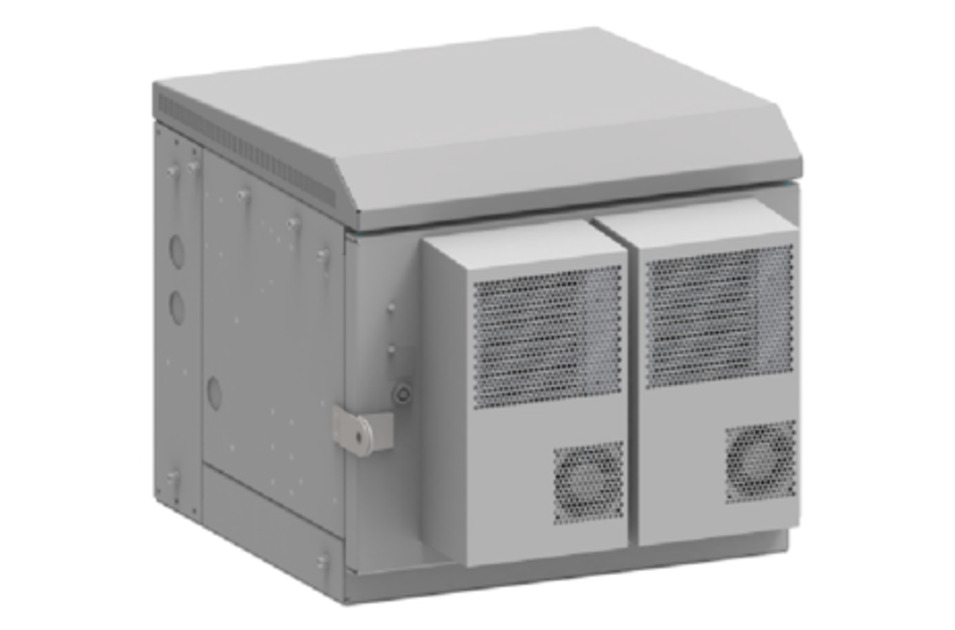

Base 8RU (small footprint) Micro Outdoor Cabinet
Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.
Features and benefits
The CMC8S is a durable, weather-resistant cabinet designed to protect and support rack-mounted equipment in demanding environments. Tailored for telecom and networking applications, it accommodates a wide range of components including DC power systems, fiber trays, routers, batteries, and more. Includes LED light, 20 position alarm block, door intrusion alarm, GFCI duplex outlex and ground bus bar.
- Flexible Mounting Options: Supports pad, pole, H-frame, and wall mounting configurations.
- Rack Capacity: Offers 8RU of standard 19” rack space.
- Multi-Equipment Support: Compatible with power distribution units, network servers, batteries, and other rack-mounted devices.
- Enhanced Security: Front door and rear panel designed for padlock compatibility.
- Streamlined Cable Management: Multiple cable entry points for flexible and organized installations.
- Customizable Configurations: Additional options accessible via the Integration Program.
- Platform Consistency: Shares common components across the product line for simplified maintenance and integration.
Specifications
Product classification
| Regional Availability | Latin America | North America |
| Product Type | Macro cell site enclosure |
| Product Series | CMC |
| Warranty | For more information, please consult our Product Warranty guidelines |
General specifications
| Access | Front door | Rear | Removable panel |
| Alarm Type | Door alarm | HVAC alarms (including high temperature, failure) |
| Color | Light Gray (RAL 7035) |
| Cooling | Passive Cooling |
| Door Security | Hasp and staple |
| Door Type, front | Hinged | Turn latch |
| Grounding Connection | Standard |
| Mounting | H-frame | Pad | Plinth | Universal pole mount | Universal wall mount |
| Rack Type | EIA 19 in |
| Rack Units | 8 |
Dimensions
| Height | 635.000 mm | 25 in |
| Width | 609.600 mm | 24 in |
| Depth | 609.600 mm | 24 in |
Electrical specifications
| Alarm Output | Dry contacts |
| Cooling Capacity | 0 W |
Material specifications
| Finish | Powder coated | UV resistant |
| Material Type | Aluminum |
Environmental specifications
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Qualification Standards | IEC 60529, IP55 | Telcordia GR-487 |
| Safety Standard | UL |
Packaging and weights
| Weight, net | 24.948 kg | 55 lb |
Product classification
| Regional Availability | Latin America | North America |
| Product Type | Macro cell site enclosure |
| Product Series | CMC |
| Warranty | For more information, please consult our Product Warranty guidelines |
General specifications
| Access | Front door | Rear | Removable panel |
| Alarm Type | Door alarm | HVAC alarms (including high temperature, failure) |
| Color | Light Gray (RAL 7035) |
| Cooling | Passive Cooling |
| Door Security | Hasp and staple |
| Door Type, front | Hinged | Turn latch |
| Grounding Connection | Standard |
| Mounting | H-frame | Pad | Plinth | Universal pole mount | Universal wall mount |
| Rack Type | EIA 19 in |
| Rack Units | 8 |
Dimensions
| Height | 635.000 mm | 25 in |
| Width | 609.600 mm | 24 in |
| Depth | 609.600 mm | 24 in |
Electrical specifications
| Alarm Output | Dry contacts |
| Cooling Capacity | 0 W |
Material specifications
| Finish | Powder coated | UV resistant |
| Material Type | Aluminum |
Environmental specifications
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Qualification Standards | IEC 60529, IP55 | Telcordia GR-487 |
| Safety Standard | UL |
Packaging and weights
| Weight, net | 24.948 kg | 55 lb |
