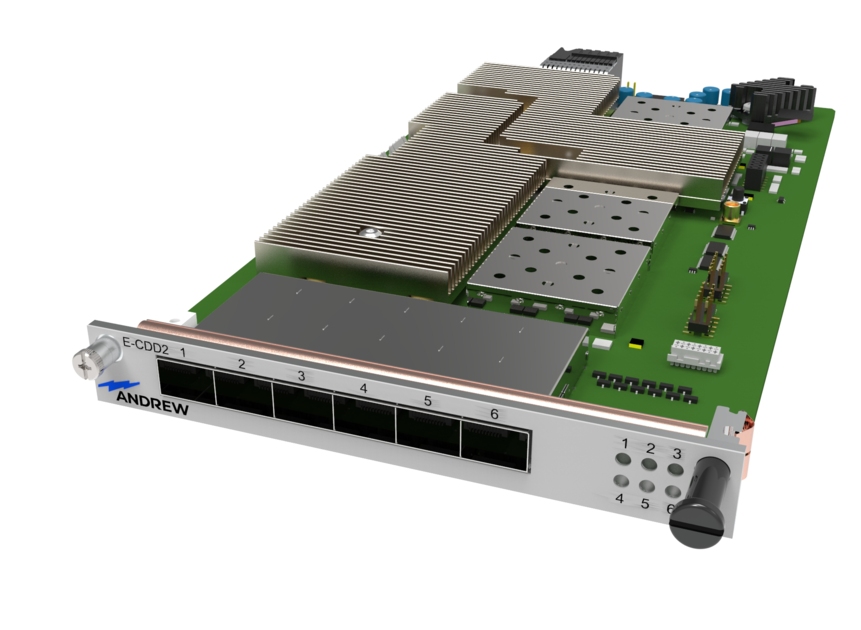

7859935-00 | E-CDD2

CPRI Digital Donor Card

Finish making your selections or clear them to view relevant specifications.
Download specifications
Find a partner
Features and benefits
  • Supports up to 24 AxCs per card in FDD mode
  • Supports up to 4 AxCs per card in TDD mode
  • Supports Line Rate 7 in FDD and TDD mode

Product classification

Product Type Card
Product Brand ERA®

General specifications

Device Type Card
General Alarm Integrated into management system
Input Connector Interface SFP+
Input Connector, quantity 6
Input Interface Note 2 active ports in TDD | 6 active ports in FDD
Management Interface Integrated into management system
Note Detailed Product Specifications are available. Please contact your local ANDREW representative.
Required Subrack Version WCS-2 SUBRACK (7635443-03) | WCS-2 SUBRACK (A7635443-03) | WCS-4 SUBRACK (7635442-03) | WCS-4 SUBRACK (A7635442-03) | WCS2 SUBRACK, INTEGRATED DC PSU (7844067-02) | WCS2 SUBRACK, INTEGRATED DC PSU (A7844067-02) | WCS4 SUBRACK, INTEGRATED DC PSU (7844068-02) | WCS4 SUBRACK, INTEGRATED DC PSU (A7844068-02)

Dimensions

Height 20 mm | 0.787 in
Width 145 mm | 5.709 in
Depth 300 mm | 11.811 in

Electrical specifications

Electromagnetic Compatibility (EMC) EN 301489

Environmental specifications

Ingress Protection Test Method IEC 60529:2001, IP20

Packaging and weights

Height, packed 63 mm | 2.480 in
Width, packed 210 mm | 8.268 in
Depth, packed 362 mm | 14.252 in
Weight, net 0.5 kg | 1.102 lb

Product classification

Product Type Card
Product Brand ERA®

General specifications

Device Type Card
General Alarm Integrated into management system
Input Connector Interface SFP+
Input Connector, quantity 6
Input Interface Note 2 active ports in TDD | 6 active ports in FDD
Management Interface Integrated into management system
Note Detailed Product Specifications are available. Please contact your local ANDREW representative.
Required Subrack Version WCS-2 SUBRACK (7635443-03) | WCS-2 SUBRACK (A7635443-03) | WCS-4 SUBRACK (7635442-03) | WCS-4 SUBRACK (A7635442-03) | WCS2 SUBRACK, INTEGRATED DC PSU (7844067-02) | WCS2 SUBRACK, INTEGRATED DC PSU (A7844067-02) | WCS4 SUBRACK, INTEGRATED DC PSU (7844068-02) | WCS4 SUBRACK, INTEGRATED DC PSU (A7844068-02)

Dimensions

Height 20 mm | 0.787 in
Width 145 mm | 5.709 in
Depth 300 mm | 11.811 in

Electrical specifications

Electromagnetic Compatibility (EMC) EN 301489

Environmental specifications

Ingress Protection Test Method IEC 60529:2001, IP20

Packaging and weights

Height, packed 63 mm | 2.480 in
Width, packed 210 mm | 8.268 in
Depth, packed 362 mm | 14.252 in
Weight, net 0.5 kg | 1.102 lb
