7850475
Omni Absorber ground plane to improve VSWR on metal ceilings (this product was designed to match the CMAX-OMF7-43-UWI53 and CMAX-OUS antennas)
Specifications
Product classification
| Product Type | Cover |
General specifications
| Color | White (RAL 9016) |
Dimensions
| Height | 31.5 mm | 1.240 in |
| Outer Diameter | 363 mm | 14.291 in |

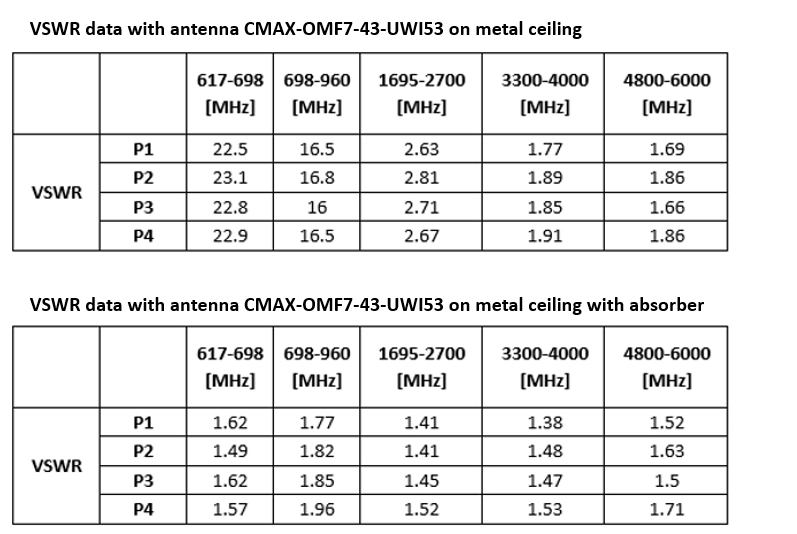

Electrical performance
| Click on image to enlarge. |
Material specifications
| Material Type | ASA | PC |
Environmental specifications
| UV Resistance | UV stabilized |
Packaging and weights
| Height, packed | 40 mm | 1.575 in |
| Width, packed | 375 mm | 14.764 in |
| Length, packed | 375 mm | 14.764 in |
| Packaging quantity | 1 |
| Weight, gross | 850 g | 1.874 lb |
| Weight, net | 700 g | 1.543 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product classification
| Product Type | Cover |
General specifications
| Color | White (RAL 9016) |
Dimensions
| Height | 31.5 mm | 1.240 in |
| Outer Diameter | 363 mm | 14.291 in |
Material specifications
| Material Type | ASA | PC |
Environmental specifications
| UV Resistance | UV stabilized |
Packaging and weights
| Height, packed | 40 mm | 1.575 in |
| Width, packed | 375 mm | 14.764 in |
| Length, packed | 375 mm | 14.764 in |
| Packaging quantity | 1 |
| Weight, gross | 850 g | 1.874 lb |
| Weight, net | 700 g | 1.543 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
