MLOC4-RGXF-M9
Base product: MLOC4-RGXF

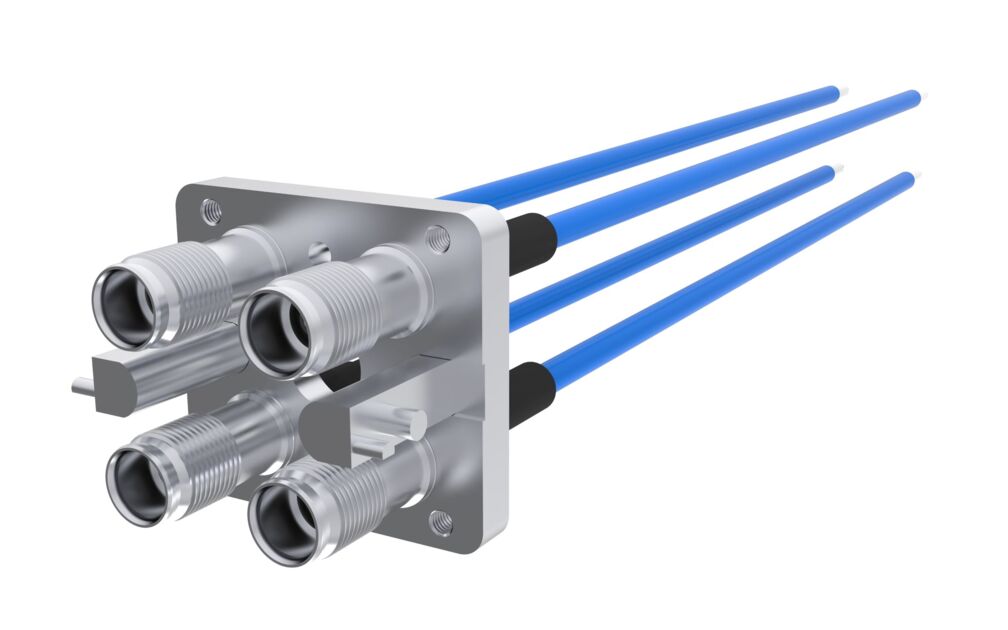

HELIAX® M-LOC Multiport cluster 4 ports SureFlex® cable assembly with interface type M-LOC female to open end, size 0.141", length 0.9 meters
Specifications
Product classification
| Product Type | HELIAX® MLOC cluster, SureFlex® D-CLASS, dynamic PIM |
| Product Brand | HELIAX® | SureFlex® |
| Product Series | MLOC |
General specifications
| Attachment, Connector A | Factory attached |
| Body Style, Connector A | Straight |
| Interface, Connector A | M-LOC Female |
| Specification Sheet Revision Level | A |
Dimensions
| Length | 0.9 m | 2.953 ft |
| Cable Length Unit | Meters |
| Nominal Size | 0.141 in |
Electrical specifications
| 3rd Order IMD Dynamic | -119 dBm |
| 3rd Order IMD Dynamic Test Method | Two +43 dBm carriers per IEC 62037 |
Return loss/vswr
| Frequency band | Vswr | Return loss (db) |
| 680–960 MHz | 1.065 | 30.00 |
| 960–3000 MHz | 1.152 | 23.00 |
| 3000–4000 MHz | 1.288 | 18.00 |
| 4000–6000 MHz | 1.433 | 15.00 |
Mechanical specifications
| Minimum Bend Radius, multiple Bends | 40 mm | 1.575 in |
| Minimum Bend Radius, Single Bend | 8 mm | 0.315 in |
Environmental specifications
| Installation temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Storage Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Immersion Test Method | Meets IEC 60529:2001, IP68 in mated condition |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
