L1A-PNMNM-1M
Base product: L1A-PNMNM

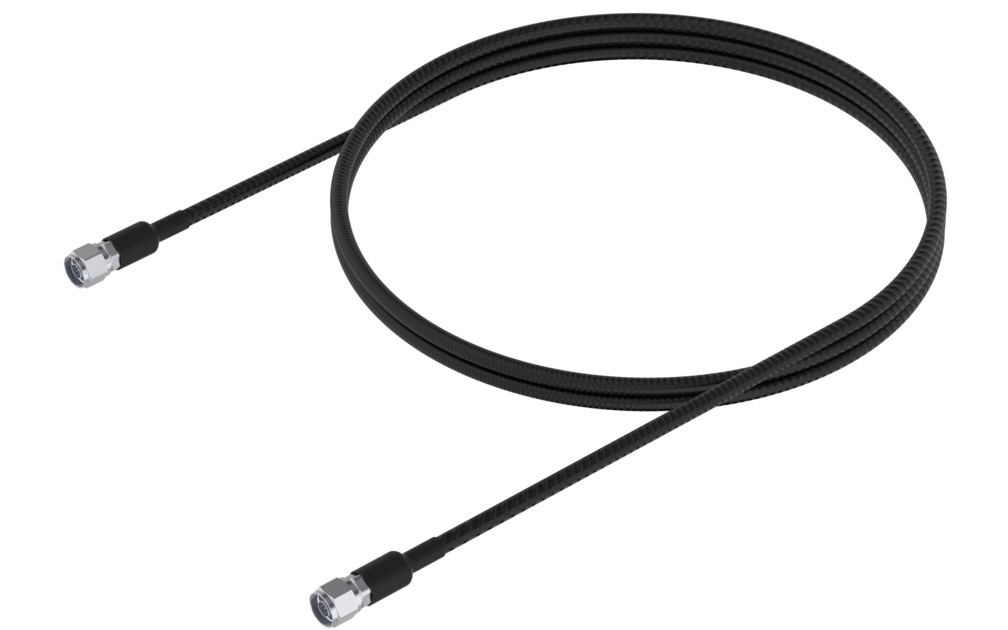

LDF1-50 SureFlex® Jumper with interface types N Male and N Male, 1 m
Specifications
Product classification
| Product Type | SureFlex® standard |
| Product Brand | HELIAX® | SureFlex® |
| Product Series | LDF1-50 |
General specifications
| Body Style, Connector A | Straight |
| Body Style, Connector B | Straight |
| Interface, Connector A | N Male |
| Interface, Connector B | N Male |
| Specification Sheet Revision Level | A |
Dimensions
| Length | 1 m | 3.281 ft |
| Cable Length Unit | Meters |
| Nominal Size | 1/4 in |
Return loss/vswr
| Frequency band | Vswr | Return loss (db) |
| 700–3000 MHz | 1.222 | 20.01 |
Jumper assembly sample label
| Click on image to enlarge. |
Environmental specifications
| Immersion Test Method | Meets IEC 60529:2001, IP68 in mated condition |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | SureFlex® standard |
| Product Brand | HELIAX® | SureFlex® |
| Product Series | LDF1-50 |
General specifications
| Body Style, Connector A | Straight |
| Body Style, Connector B | Straight |
| Interface, Connector A | N Male |
| Interface, Connector B | N Male |
| Specification Sheet Revision Level | A |
Dimensions
| Length | 1 m | 3.281 ft |
| Cable Length Unit | Meters |
| Nominal Size | 1/4 in |
Return loss/vswr
| Frequency Band | VSWR | Return Loss (dB) |
| 700–3000 MHz | 1.222 | 20.01 |
Environmental specifications
| Immersion Test Method | Meets IEC 60529:2001, IP68 in mated condition |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
