IMDLOAD-110M
PTS1-50-HRL SureFlex® Jumper with interface type 7-16 DIN Female Panel Mount, 110 m
Specifications
Product classification
| Product Type | Wireless transmission cable assembly |
| Product Brand | HELIAX® | SureFlex® |
| Product Series | PTS1-50-HRL |
General specifications
| Body Style, Connector A | Panel mount |
| Interface, Connector A | 7-16 DIN Female |
| Interface, Connector B | Sold separately |
| Specification Sheet Revision Level | A |
Dimensions
| Length | 110 m | 360.892 ft |
| Cable Length Unit | Meters |
| Nominal Size | 1/4 in |
Electrical specifications
| 3rd Order IMD | -125 dBm |
Return loss/vswr
| Frequency band | Vswr | Return loss (db) |
| 700–3000 MHz | 1.430 | 15.05 |

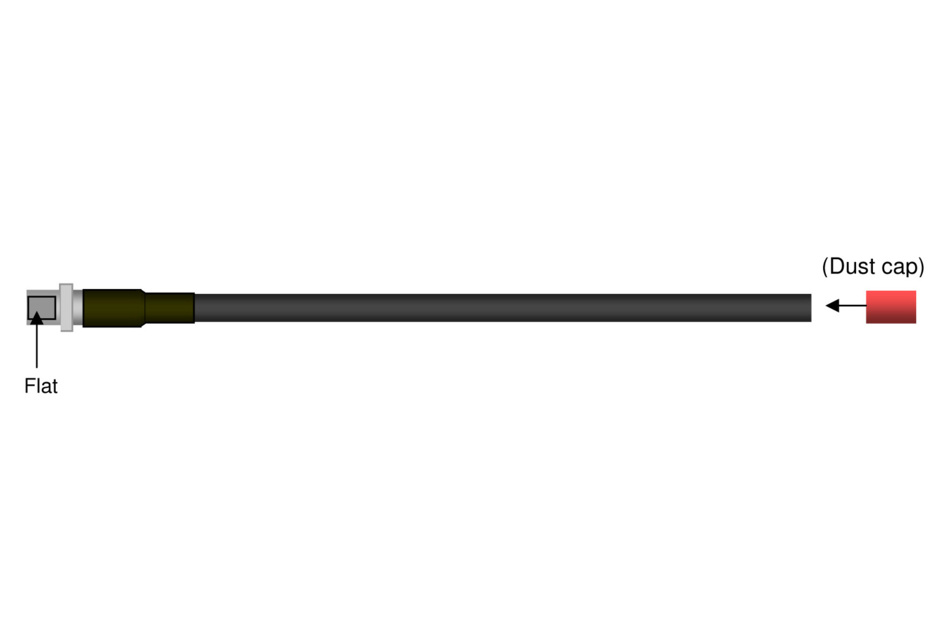

Jumper assembly sample label
| Click on image to enlarge. |
Environmental specifications
| Immersion Test Method | Meets IEC 60529:2001, IP68 in mated condition |
Product classification
| Product Type | Wireless transmission cable assembly |
| Product Brand | HELIAX® | SureFlex® |
| Product Series | PTS1-50-HRL |
General specifications
| Body Style, Connector A | Panel mount |
| Interface, Connector A | 7-16 DIN Female |
| Interface, Connector B | Sold separately |
| Specification Sheet Revision Level | A |
Dimensions
| Length | 110 m | 360.892 ft |
| Cable Length Unit | Meters |
| Nominal Size | 1/4 in |
Electrical specifications
| 3rd Order IMD | -125 dBm |
Return loss/vswr
| Frequency Band | VSWR | Return Loss (dB) |
| 700–3000 MHz | 1.430 | 15.05 |
Environmental specifications
| Immersion Test Method | Meets IEC 60529:2001, IP68 in mated condition |
| Click on image to enlarge. |
