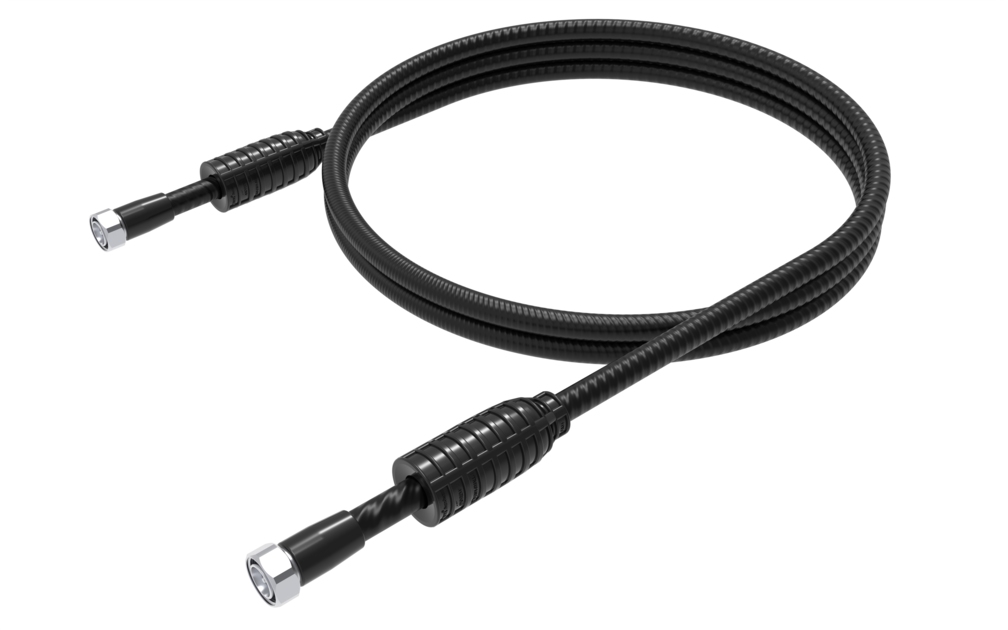

F4CR-HMHM-5M-P-SGW
HELIAX® 1/2" Superflexible Fire retardant SureFlex® Jumper with interface types 4.3-10 Male and 4.3-10 Male, with black non-halogenated fire-retardant polyolefin jacket. with HELIAX® SureGuard weatherproofing, 5 m
Specifications
Return loss/vswr
| Frequency band | Vswr | Return loss (db) |
| 698–970 MHz | 1.065 | 30.00 |
| 1700–2200 MHz | 1.065 | 30.00 |
| 2300–2700 MHz | 1.083 | 28.00 |
| 3400–3800 MHz | 1.222 | 20.00 |
Jumper assembly sample label
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Return loss/vswr
| Frequency Band | VSWR | Return Loss (dB) |
| 698–970 MHz | 1.065 | 30.00 |
| 1700–2200 MHz | 1.065 | 30.00 |
| 2300–2700 MHz | 1.083 | 28.00 |
| 3400–3800 MHz | 1.222 | 20.00 |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
