41SP
UHF Male for 1/4 in FSJ1-50A cable
Specifications
Product classification
| Product Type | Wireless and radiating connector |
General specifications
| Body Style | Straight |
| Cable Family | FSJ1-50A |
| Inner Contact Plating | Silver |
| Interface | UHF Male |
| Mounting Angle | Straight |
| Outer Contact Plating | Nickel |
| Pressurizable | No |
Dimensions
| Height | 18.54 mm | 0.730 in |
| Width | 18.54 mm | 0.730 in |
| Length | 43.69 mm | 1.720 in |
| Diameter | 18.54 mm | 0.730 in |
| Nominal Size | 1/4 in |

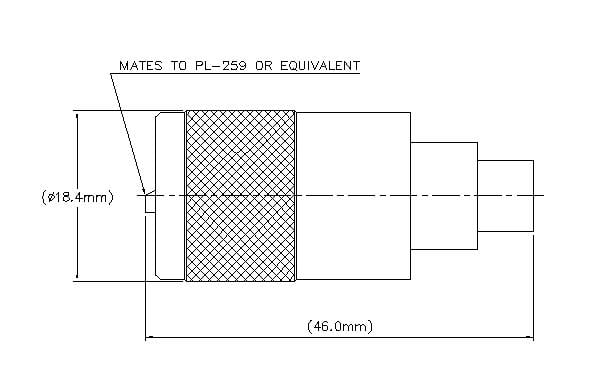

Outline drawing
| Click on image to enlarge. |
Electrical specifications
| 3rd Order IMD at Frequency | -112 dBm @ 910 MHz |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Average Power at Frequency | 0.4 kW @ 900 MHz |
| Cable Impedance | 50 ohm |
| Connector Impedance | 50 ohm |
| Operating Frequency Band | 0 – 3000 MHz |
Return loss/vswr
| Frequency band | Vswr | Return loss (db) |
| 45–400 MHz | 1.152 | 23.02 |
Mechanical specifications
| Connector Retention Tensile Force | 449.27 N | 101.000 lbf |
| Interface Durability | 500 cycles |
| Interface Durability Method | IEC 61169-4:17 |
| Mechanical Shock Test Method | IEC 60068-2-27 |
Environmental specifications
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Storage Temperature | -65 °C to +125 °C (-85 °F to +257 °F) |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
| Average Power, Ambient Temperature | 40 °C | 104 °F |
| Average Power, Inner Conductor Temperature | 100 °C | 212 °F |
| Corrosion Test Method | IEC 60068-2-11 |
| Moisture Resistance Test Method | IEC 60068-2-3 |
| Thermal Shock Test Method | IEC 60068-2-14 |
| Vibration Test Method | IEC 60068-2-6 |
Packaging and weights
| Weight, net | 61 g | 0.134 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product classification
| Product Type | Wireless and radiating connector |
General specifications
| Body Style | Straight |
| Cable Family | FSJ1-50A |
| Inner Contact Plating | Silver |
| Interface | UHF Male |
| Mounting Angle | Straight |
| Outer Contact Plating | Nickel |
| Pressurizable | No |
Dimensions
| Height | 18.54 mm | 0.730 in |
| Width | 18.54 mm | 0.730 in |
| Length | 43.69 mm | 1.720 in |
| Diameter | 18.54 mm | 0.730 in |
| Nominal Size | 1/4 in |
Electrical specifications
| 3rd Order IMD at Frequency | -112 dBm @ 910 MHz |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Average Power at Frequency | 0.4 kW @ 900 MHz |
| Cable Impedance | 50 ohm |
| Connector Impedance | 50 ohm |
| Operating Frequency Band | 0 – 3000 MHz |
Return loss/vswr
| Frequency Band | VSWR | Return Loss (dB) |
| 45–400 MHz | 1.152 | 23.02 |
Mechanical specifications
| Connector Retention Tensile Force | 449.27 N | 101.000 lbf |
| Interface Durability | 500 cycles |
| Interface Durability Method | IEC 61169-4:17 |
| Mechanical Shock Test Method | IEC 60068-2-27 |
Environmental specifications
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Storage Temperature | -65 °C to +125 °C (-85 °F to +257 °F) |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
| Average Power, Ambient Temperature | 40 °C | 104 °F |
| Average Power, Inner Conductor Temperature | 100 °C | 212 °F |
| Corrosion Test Method | IEC 60068-2-11 |
| Moisture Resistance Test Method | IEC 60068-2-3 |
| Thermal Shock Test Method | IEC 60068-2-14 |
| Vibration Test Method | IEC 60068-2-6 |
Packaging and weights
| Weight, net | 61 g | 0.134 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
