PWRT-808-T

  • Available in:
  • North America

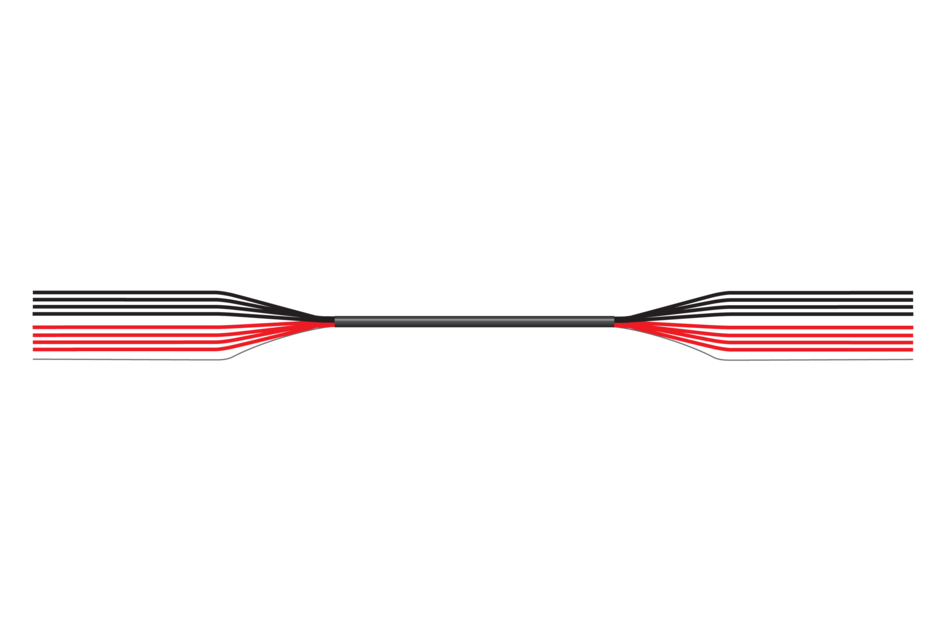

HELIAX® Remote Radio Head Power Cable, Eight conductor with shield, 8 AWG, Four Red Conductor and Four Black Conductor

Finish making your selections or clear them to view relevant specifications.
Download specifications
Find a partner

Product classification

Regional Availability North America
Product Type Power cable
Product Brand HELIAX®
Product Series PWRT
Ordering Note ANDREW® non-standard product

General specifications

Cable Type Power
Conductor Type, singles Stranded
Conductors, quantity 8
Construction Type Discrete power cable | Non-armored
Drain Wire Type Stranded
Drain Wire, quantity 1
Jacket Color Black
Supported Application Industrial

Dimensions

Diameter Over Jacket, nominal 24.000 mm | 0.94488189 in
Diameter Over Jacket, maximum 24.600 mm | 0.968503937 in
Jacket Thickness 1.630 mm | 0.0641732283 in
Conductor Gauge, singles 8 AWG
Drain Wire Gauge 10 AWG

Electrical specifications

Conductor dc Resistance 2.139 ohms/km | 0.652 ohms/kft
Conductor dc Resistance Note Maximum value based on a standard condition of 20 °C (68 °F)
dc Resistance Note Maximum value based on a standard condition of 20 °C (68 °F)
dc Resistance, maximum 7.021 ohms/km | 2.14 ohms/kft
Safety Voltage Rating 600 V

Material specifications

Conductor Material Stranded copper wire
Dielectric Material PVC
Drain Wire Material Tinned copper
Filler Material Polypropylene
Insulation Material, singles PVC
Jacket Material PVC
Ripcord Material Para-aramid synthetic fiber
Shield (Tape) Material Copper, unbonded

Environmental specifications

Installation temperature -30 °C to +70 °C (-22 °F to +158 °F)
Operating Temperature -40 °C to +80 °C (-40 °F to +176 °F)
Storage Temperature -40 °C to +80 °C (-40 °F to +176 °F)
Cable Qualification Standards UL 1277
Environmental Space UV resistant for outdoor and/or direct burial installations

Product classification

Regional Availability North America
Product Type Power cable
Product Brand HELIAX®
Product Series PWRT
Ordering Note ANDREW® non-standard product

General specifications

Cable Type Power
Conductor Type, singles Stranded
Conductors, quantity 8
Construction Type Discrete power cable | Non-armored
Drain Wire Type Stranded
Drain Wire, quantity 1
Jacket Color Black
Supported Application Industrial

Dimensions

Diameter Over Jacket, nominal 24.000 mm | 0.94488189 in
Diameter Over Jacket, maximum 24.600 mm | 0.968503937 in
Jacket Thickness 1.630 mm | 0.0641732283 in
Conductor Gauge, singles 8 AWG
Drain Wire Gauge 10 AWG

Electrical specifications

Conductor dc Resistance 2.139 ohms/km | 0.652 ohms/kft
Conductor dc Resistance Note Maximum value based on a standard condition of 20 °C (68 °F)
dc Resistance Note Maximum value based on a standard condition of 20 °C (68 °F)
dc Resistance, maximum 7.021 ohms/km | 2.14 ohms/kft
Safety Voltage Rating 600 V

Material specifications

Conductor Material Stranded copper wire
Dielectric Material PVC
Drain Wire Material Tinned copper
Filler Material Polypropylene
Insulation Material, singles PVC
Jacket Material PVC
Ripcord Material Para-aramid synthetic fiber
Shield (Tape) Material Copper, unbonded

Environmental specifications

Installation temperature -30 °C to +70 °C (-22 °F to +158 °F)
Operating Temperature -40 °C to +80 °C (-40 °F to +176 °F)
Storage Temperature -40 °C to +80 °C (-40 °F to +176 °F)
Cable Qualification Standards UL 1277
Environmental Space UV resistant for outdoor and/or direct burial installations
