MPTO10BBBBNN-1000M
- Available in:
- Europe

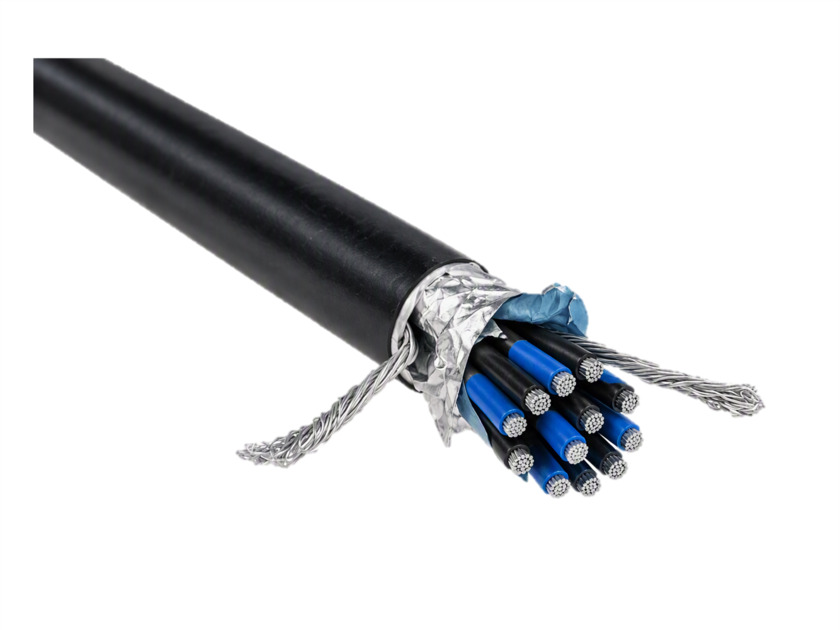

HELIAX® Power trunk, with aluminum shield with quantity 10 x 10mm² + 2 x 10mm², flame resistant CPR Class B2ca. rated, 1000 meters
Specifications
Product classification
| Regional Availability | Europe |
| Product Type | Power cable |
| Product Brand | HELIAX® |
| Ordering Note | ANDREW® non-standard product |
| Warranty | For more information, please consult our Product Warranty guidelines |
General specifications
| Application | Remote radio head |
| Cable Type | Power |
| Conductor Type, singles | Stranded |
| Conductors, quantity | 10 |
| Jacket Color | Black |
| Jacket Color, singles | Black | Blue |
| Outer Shield (Tape) Material | Al/PET tape |
Dimensions
| Cable Length | 1000.000 m | 3280.84 ft |
| Diameter Over Jacket, maximum | 25.300 mm | 0.996063 in |
| Conductor Gauge | 10 mm² class 5 |
Material specifications
| Ground Wire Material | Annealed aluminum wires |
| Insulation Material, singles | Flame retardant PE |
| Jacket Material | Flame retardant PE | Low Smoke Zero Halogen (LSZH) |
| Outer Shield (Braid) Coverage | 100 % |
| Outer Shield (Tape) Material | Al/PET tape |
Environmental specifications
| Installation temperature | -20 °C to +70 °C (-4 °F to +158 °F) |
| Operating Temperature | -40 °C to +90 °C (-40 °F to +194 °F) |
| Storage Temperature | -40 °C to +80 °C (-40 °F to +176 °F) |
| EN50575 CPR Cable EuroClass | B2ca | a1 | d2 | s1 |
| EN50575 CPR Cable EuroClass Fire Performance | B2ca |
| EN50575 CPR Cable EuroClass Smoke Rating | s1 |
| EN50575 CPR Cable EuroClass Droplets Rating | d2 |
| EN50575 CPR Cable EuroClass Acidity Rating | a1 |
| Environmental Space | Indoor/Outdoor |
| Jacket UV Resistance | UV stabilized |
Packaging and weights
| Cable weight | 1400.005 kg/km | 940.76 lb/kft |
Product classification
| Regional Availability | Europe |
| Product Type | Power cable |
| Product Brand | HELIAX® |
| Ordering Note | ANDREW® non-standard product |
| Warranty | For more information, please consult our Product Warranty guidelines |
General specifications
| Application | Remote radio head |
| Cable Type | Power |
| Conductor Type, singles | Stranded |
| Conductors, quantity | 10 |
| Jacket Color | Black |
| Jacket Color, singles | Black | Blue |
| Outer Shield (Tape) Material | Al/PET tape |
Dimensions
| Cable Length | 1000.000 m | 3280.84 ft |
| Diameter Over Jacket, maximum | 25.300 mm | 0.996063 in |
| Conductor Gauge | 10 mm² class 5 |
Material specifications
| Ground Wire Material | Annealed aluminum wires |
| Insulation Material, singles | Flame retardant PE |
| Jacket Material | Flame retardant PE | Low Smoke Zero Halogen (LSZH) |
| Outer Shield (Braid) Coverage | 100 % |
| Outer Shield (Tape) Material | Al/PET tape |
Environmental specifications
| Installation temperature | -20 °C to +70 °C (-4 °F to +158 °F) |
| Operating Temperature | -40 °C to +90 °C (-40 °F to +194 °F) |
| Storage Temperature | -40 °C to +80 °C (-40 °F to +176 °F) |
| EN50575 CPR Cable EuroClass | B2ca | a1 | d2 | s1 |
| EN50575 CPR Cable EuroClass Fire Performance | B2ca |
| EN50575 CPR Cable EuroClass Smoke Rating | s1 |
| EN50575 CPR Cable EuroClass Droplets Rating | d2 |
| EN50575 CPR Cable EuroClass Acidity Rating | a1 |
| Environmental Space | Indoor/Outdoor |
| Jacket UV Resistance | UV stabilized |
Packaging and weights
| Cable weight | 1400.005 kg/km | 940.76 lb/kft |
