MPT-F2I-BB-NN-500M

  • Available in:
  • Europe

HELIAX® Power cable, with aluminum shield and qty 2 6mm2 cores, flame resistant CPR Class B2ca s1, d2, a1, 500 meters. Voltage Rating Maximum AC0.6KV Voltage Drop 3.82 mV/A/m Conductor, cross-sectional area 2.5 mm2

Finish making your selections or clear them to view relevant specifications.
Download specifications
Find a partner
Features and benefits
Additional Specifications:

Voltage Rating Maximum AC0.6KV
Voltage Drop 3.82 mV/A/m
Conductor, cross-sectional area 2.5 mm2
CPR Class B2ca s1, d2, a1

Product classification

Regional Availability Europe
Product Type Power cable
Product Brand HELIAX®
Ordering Note ANDREW® non-standard product
Warranty For more information, please consult our Product Warranty guidelines

General specifications

Application Remote radio head
Cable Type Power
Conductors, quantity 2
Jacket Color Black
Jacket Color, singles Blue | White

Dimensions

Cable Length 500.024 m | 1640.5 ft
Diameter Over Jacket 8.000 mm | 0.314961 in

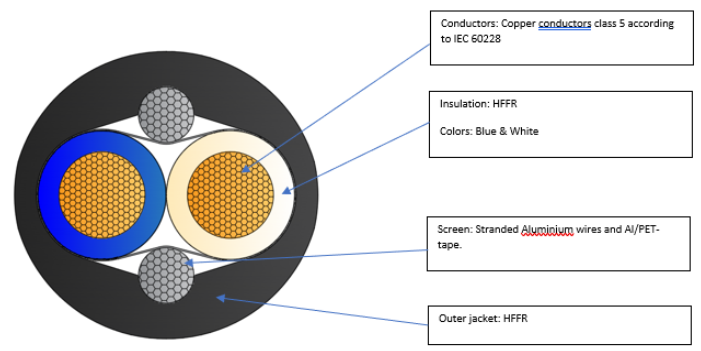

Cross section drawing

Click on image to enlarge.

Electrical specifications

Safety Voltage Rating 600 V

Ordering tree

Click on image to enlarge.

Material specifications

Ground Wire Material Annealed aluminum wires
Insulation Material, singles Flame retardant PE
Jacket Material Flame retardant PE
Outer Shield (Braid) Material Aluminum
Outer Shield (Tape) Material Al/PET tape

Environmental specifications

Installation temperature -20 °C to +70 °C (-4 °F to +158 °F)
Operating Temperature -40 °C to +90 °C (-40 °F to +194 °F)
Storage Temperature -40 °C to +80 °C (-40 °F to +176 °F)
Environmental Space Indoor/Outdoor
Flame Test Listing UL 1581
Jacket UV Resistance UV stabilized

Packaging and weights

Cable weight 96.731 kg/km | 65 lb/kft

Product classification

Regional Availability Europe
Product Type Power cable
Product Brand HELIAX®
Ordering Note ANDREW® non-standard product
Warranty For more information, please consult our Product Warranty guidelines

General specifications

Application Remote radio head
Cable Type Power
Conductors, quantity 2
Jacket Color Black
Jacket Color, singles Blue | White

Dimensions

Cable Length 500.024 m | 1640.5 ft
Diameter Over Jacket 8.000 mm | 0.314961 in

Electrical specifications

Safety Voltage Rating 600 V

Material specifications

Ground Wire Material Annealed aluminum wires
Insulation Material, singles Flame retardant PE
Jacket Material Flame retardant PE
Outer Shield (Braid) Material Aluminum
Outer Shield (Tape) Material Al/PET tape

Environmental specifications

Installation temperature -20 °C to +70 °C (-4 °F to +158 °F)
Operating Temperature -40 °C to +90 °C (-40 °F to +194 °F)
Storage Temperature -40 °C to +80 °C (-40 °F to +176 °F)
Environmental Space Indoor/Outdoor
Flame Test Listing UL 1581
Jacket UV Resistance UV stabilized

Packaging and weights

Cable weight 96.731 kg/km | 65 lb/kft
