C61K01P28
Power Cable Assembly, TMA, power distribution unit to receive multicoupler, 8 m
Specifications
Product classification
| Product Type | Power cable assembly |
General specifications
| Application | Receive multicoupler |
| Cables in Harness, quantity | 3 |
| Conductor Type | 24 AWG |
| Conductors, quantity | 4 |
| Connector Interface | 4-pin single row header Female | 9-pin D-sub Male |
Dimensions
| Length | 8000 mm | 314.961 in |

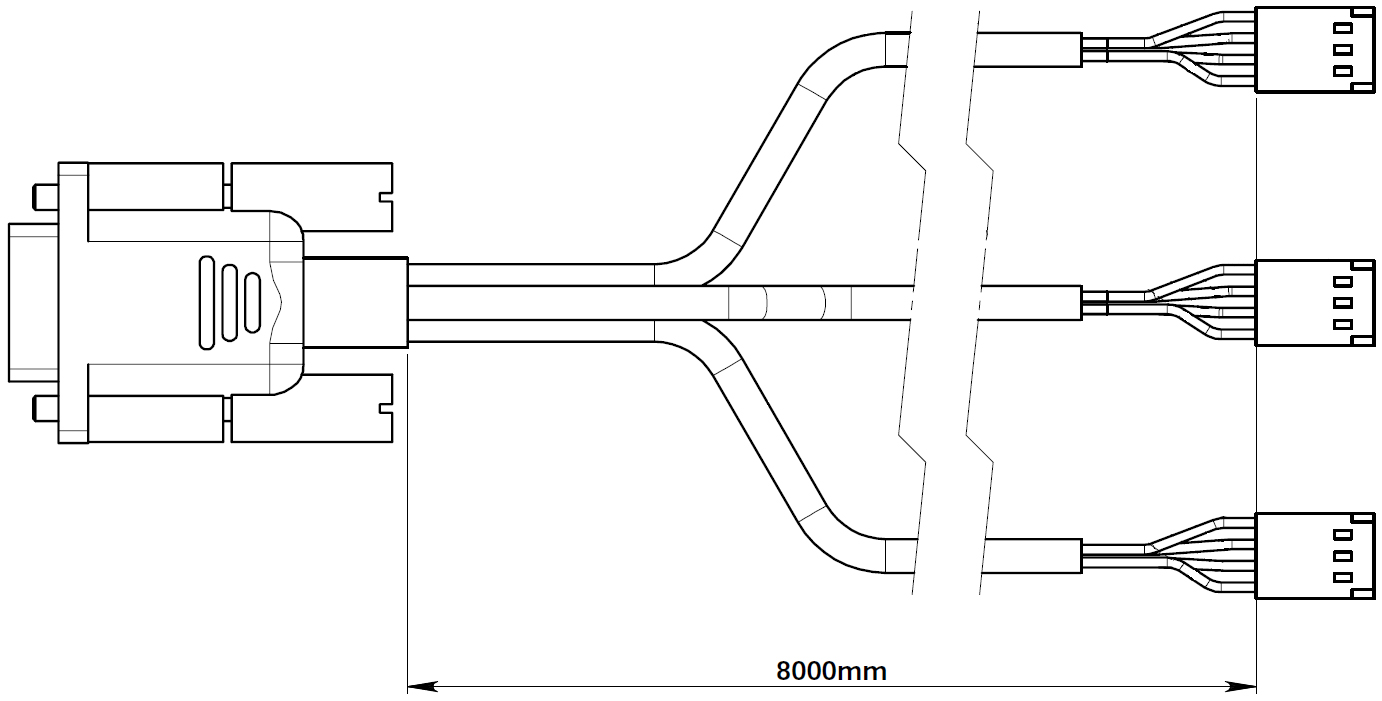

Outline drawing
| Click on image to enlarge. |
Material specifications
| Material Type | PVC |
Product classification
| Product Type | Power cable assembly |
General specifications
| Application | Receive multicoupler |
| Cables in Harness, quantity | 3 |
| Conductor Type | 24 AWG |
| Conductors, quantity | 4 |
| Connector Interface | 4-pin single row header Female | 9-pin D-sub Male |
Dimensions
| Length | 8000 mm | 314.961 in |
Material specifications
| Material Type | PVC |
| Click on image to enlarge. |
