MFT-S12-AA-JA
Base product: MFT-SERIES
- Available in:
- Asia
- Australia/New Zealand
- EMEA
- Latin America
- North America

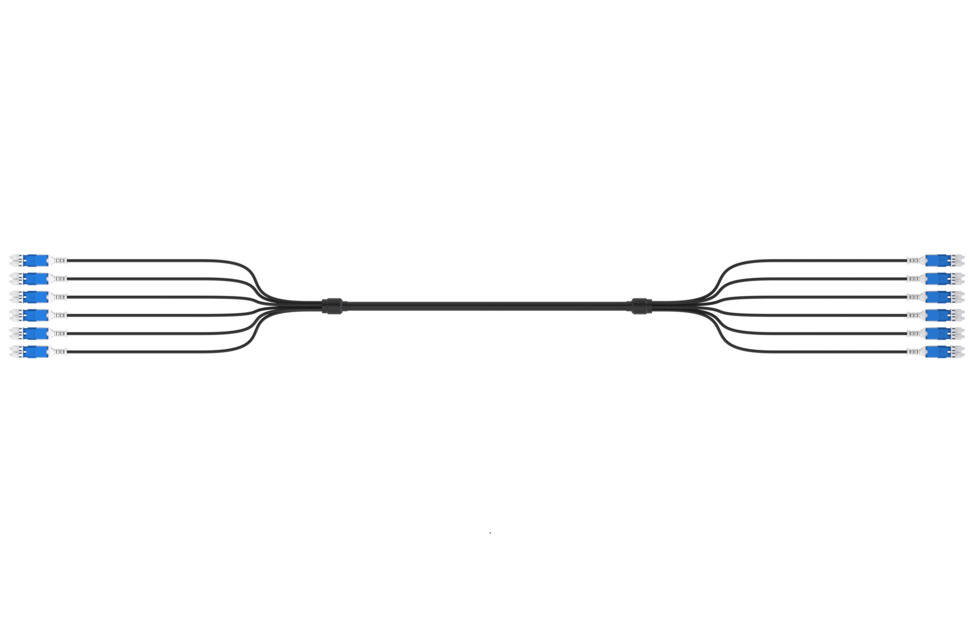

HELIAX Modular Discrete fiber trunk. End 1: Twelve fibers (6 pair} terminated DLC End 2 Twelve fibers (6 pair} terminated DLC
Specifications
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Wireless Fiber Cable Assemblies |
| Product Brand | HELIAX® |
| Product Series | Modular |
General specifications
| Interface, Connector A | DLC |
| Interface Feature, connector A | Standard |
| Interface Body Style, connector A | Straight |
| Interface, Connector B | DLC |
| Interface Feature, connector B | Standard |
| Interface Body Style, connector B | Straight |
| Jacket Color | Black |
| Jacket Marking | Meters |
| Total Fibers, quantity | 12 |
Dimensions
| Cable Assembly Length Range (m) | 1 – 1000 |
| Diameter Over Jacket | 6 mm | 0.236 in |
Ordering tree
| Click on image to enlarge. |
Material specifications
| Jacket Material | PE |
Mechanical specifications
| Minimum Bend Radius | 54 mm | 2.126 in |
| Minimum Bend Radius, furcation | 30 mm | 1.181 in |
Optical specifications
| Fiber Mode | Singlemode |
| Fiber Type | G.657.A2 |
| Insertion Loss, typical note | Insertion loss is measured at 1310 and 1550 nm |
| Insertion Loss, typical | 0.5 dB |
Environmental specifications
| Operating Temperature | -40 °C to +75 °C (-40 °F to +167 °F) |
| EN50575 CPR Cable EuroClass Fire Performance | Cca |
| Environmental Space | Indoor/Outdoor | Low Smoke Zero Halogen (LSZH) |
Packaging and weights
| Cable weight | 35 kg/km | 23.519 lb/kft |
