MCPT-114158-S
Base product: MANUAL-PREP-TOOLS
Manual Cable Preparation Tool for 1-1/4 in and 1-5/8 in coaxial cable, S series connectors
Features and benefits
- Only compatible with connectors A6HF-S, A6HM-S, A7HF-S, A7HM-S
Specifications
Product classification
| Product Type | Tool |
| Ordering Note | ANDREW® standard product (Global) |
General specifications
| Application | Prepares cable for connector attachment |
| Cutting Blade Life | 200 cable preparations |
| Cutting Blades Included | 1 |
| Jacket Blades Included | 1 |
| Tool Type | Manual cable preparation tool |
Dimensions
| Nominal Size | 1-1/4 in | 1-5/8 in |

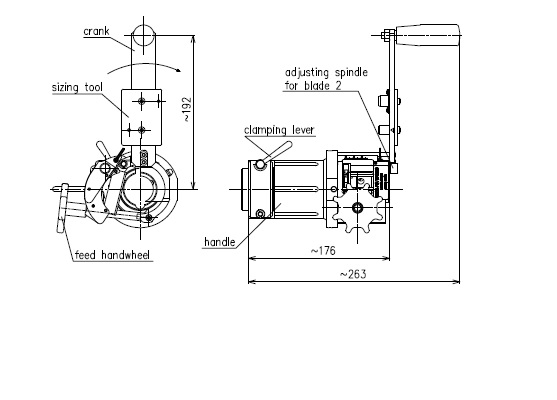

Outline drawing
| Click on image to enlarge. |
Material specifications
| Material Type | Aluminum |
Packaging and weights
| Height, packed | 279.4 mm | 11 in |
| Width, packed | 114.3 mm | 4.5 in |
| Length, packed | 299.72 mm | 11.8 in |
| Packaging quantity | 1 |
| Weight, gross | 1.8 kg | 3.968 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Product classification
| Product Type | Tool |
| Ordering Note | ANDREW® standard product (Global) |
General specifications
| Application | Prepares cable for connector attachment |
| Cutting Blade Life | 200 cable preparations |
| Cutting Blades Included | 1 |
| Jacket Blades Included | 1 |
| Tool Type | Manual cable preparation tool |
Dimensions
| Nominal Size | 1-1/4 in | 1-5/8 in |
Material specifications
| Material Type | Aluminum |
Packaging and weights
| Height, packed | 279.4 mm | 11 in |
| Width, packed | 114.3 mm | 4.5 in |
| Length, packed | 299.72 mm | 11.8 in |
| Packaging quantity | 1 |
| Weight, gross | 1.8 kg | 3.968 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
