HG-064114-158
Base product: HG-SERIES-GROMMETS

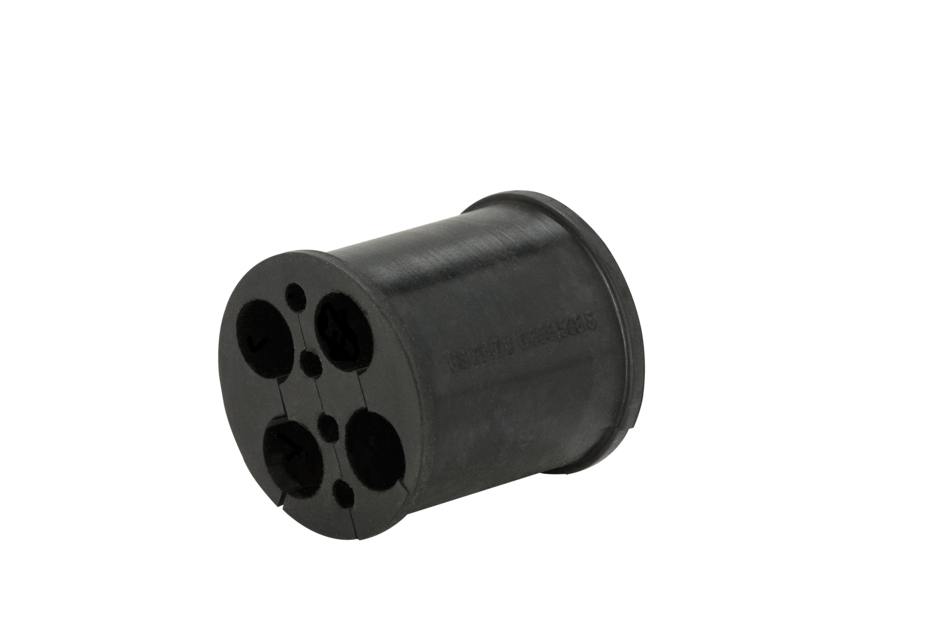

Grommet with 4 x 6 mm hole and 4 X 11 mm hole for 1-5/8 in SnapStack or Click-on Hanger
Specifications
Product classification
| Product Type | Multi-hole grommet |
| Product Brand | HELIAX® |
| Ordering Note | ANDREW® standard product (Global) |
General specifications
| Adapter Type | Adapter |
| Cables per Hanger | 8 |
| Color | Black |
Dimensions
| Height | 55.626 mm | 2.19 in |
| Width | 54.864 mm | 2.16 in |
| Compatible Diameter, maximum | 10.922 mm | 0.43 in |
| Compatible Diameter, minimum | 6.096 mm | 0.24 in |
| Diameter Range (cable 1) | 6 mm |
| Diameter Range (cable 2) | 11 mm |
| Nominal Size | 1-5/8 in |
Material specifications
| Material Type | EPDM rubber |
Packaging and weights
| Packaging quantity | 10 |
| Weight, gross | 0.86 kg | 1.896 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product classification
| Product Type | Multi-hole grommet |
| Product Brand | HELIAX® |
| Ordering Note | ANDREW® standard product (Global) |
General specifications
| Adapter Type | Adapter |
| Cables per Hanger | 8 |
| Color | Black |
Dimensions
| Height | 55.626 mm | 2.19 in |
| Width | 54.864 mm | 2.16 in |
| Compatible Diameter, maximum | 10.922 mm | 0.43 in |
| Compatible Diameter, minimum | 6.096 mm | 0.24 in |
| Diameter Range (cable 1) | 6 mm |
| Diameter Range (cable 2) | 11 mm |
| Nominal Size | 1-5/8 in |
Material specifications
| Material Type | EPDM rubber |
Packaging and weights
| Packaging quantity | 10 |
| Weight, gross | 0.86 kg | 1.896 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
