CB-12-50
Base product: CABLE-BANDING-SERIES

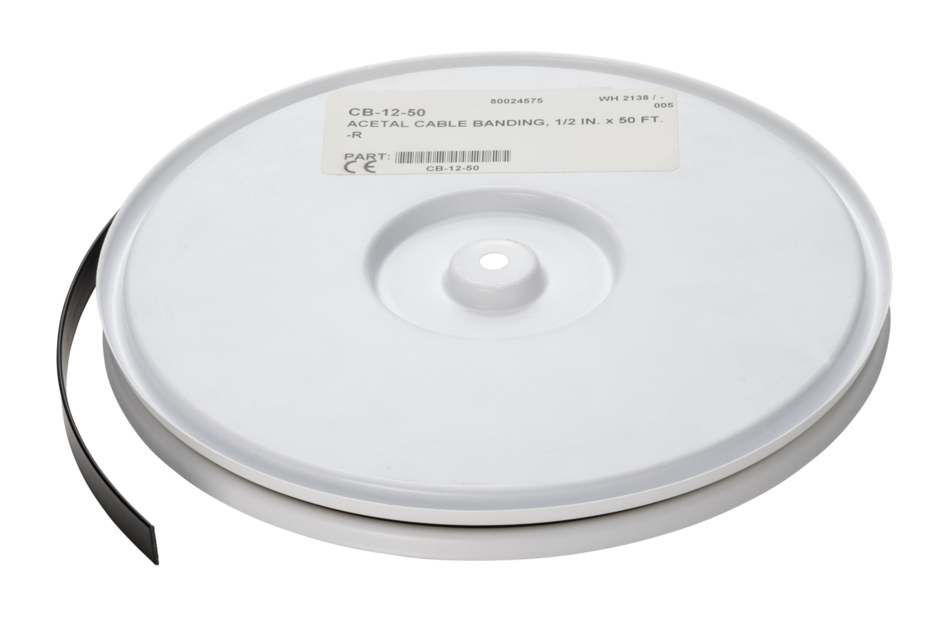

Cable Banding, Bulk, 1/2 in x 50 ft Reel (uses CB-LH-25 Locking Heads - not incl)
Specifications
Product classification
| Product Type | Banding |
| Product Brand | PIM-Guard® |
| Ordering Note | ANDREW® standard product (Global) |
General specifications
| Color | Black |
| Mounting | Angle member | Round member |
Dimensions
| Width | 12.7 mm | 0.5 in |
| Length | 15.24 m | 50 ft |
| Material Thickness | 1.524 mm | 0.06 in |
Material specifications
| Material Type | Heat-stabilized weather resistant acetal |
Mechanical specifications
| Tensile Force | 1112.055 N | 250 lbf |
Environmental specifications
| Installation temperature | -20 °C to +60 °C (-4 °F to +140 °F) |
| Operating Temperature | -65 °C to +90 °C (-85 °F to +194 °F) |
Packaging and weights
| Packaging quantity | 1 |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| CSA | Compliant |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product classification
| Product Type | Banding |
| Product Brand | PIM-Guard® |
| Ordering Note | ANDREW® standard product (Global) |
General specifications
| Color | Black |
| Mounting | Angle member | Round member |
Dimensions
| Width | 12.7 mm | 0.5 in |
| Length | 15.24 m | 50 ft |
| Material Thickness | 1.524 mm | 0.06 in |
Material specifications
| Material Type | Heat-stabilized weather resistant acetal |
Mechanical specifications
| Tensile Force | 1112.055 N | 250 lbf |
Environmental specifications
| Installation temperature | -20 °C to +60 °C (-4 °F to +140 °F) |
| Operating Temperature | -65 °C to +90 °C (-85 °F to +194 °F) |
Packaging and weights
| Packaging quantity | 1 |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| CSA | Compliant |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Documentation & downloads
Product specification
Product compliance documentation
Product specification
